North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charging Time:
8~10 Hours
With Electric Brake:
Yes
Max Load:
200kgs
Brake:
Front Drum Brake/ Rear Drum Brake
With Reverse Gear:
Yes
N.W/G.W:
100kgs/110kgs(48V20ah)
Export Carton Dimension:
145X65X110cm
Front Fork:
Steel with Suspension
Throttle:
Twist Intelligent Speed Control
Lamp:
Common Bulb
Product Description

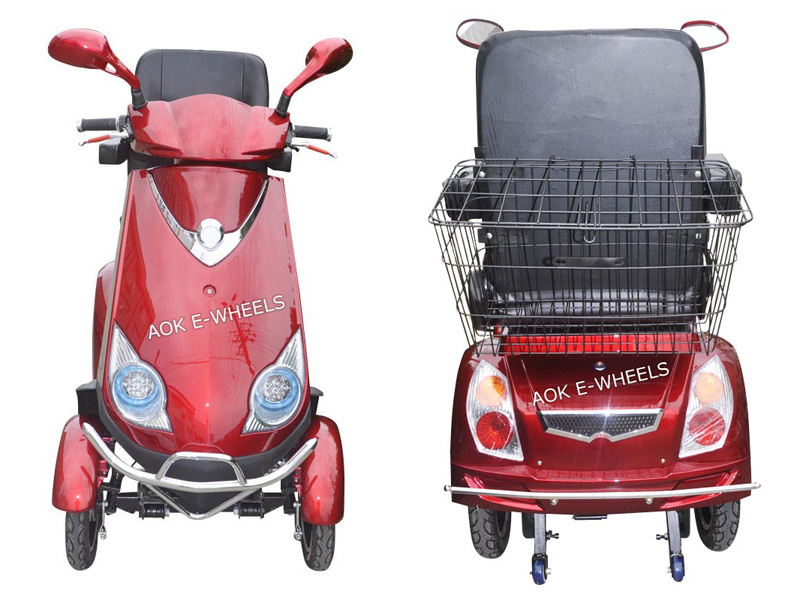

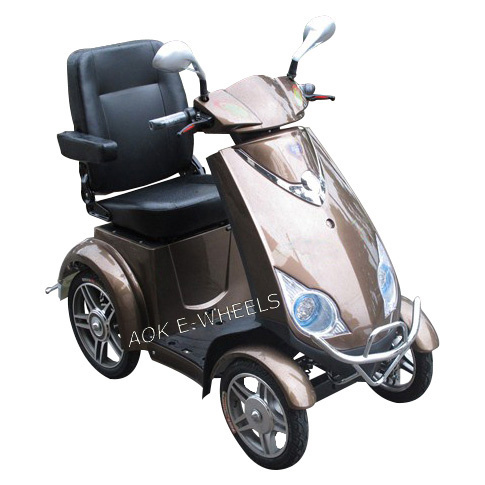

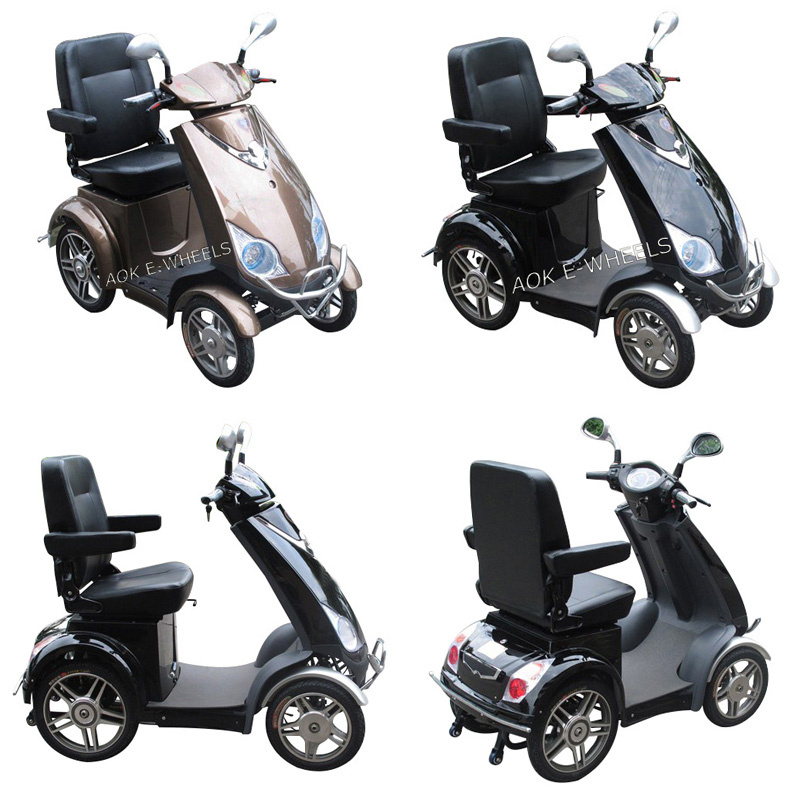

500W48V Four Wheels Electric Mobility Scooter with Electric Brake (ES-028)
Electronic specification: 1.Motor: brushless hub motor 500W 2 .Battery: 48V20Ah sealed lead-acid battery All battery with electric protection circuit 3.Dashboard: common meter 4.Controller: 500W Brushless controller 5.Charger:110V60HZ 6.Charging time: 8~10 hours 7.Lamp: common bulb 8.With electric brake
Performance & Main components: 1. Max.speed: 25km/h 2. Range: 70km(distance by riders weight,terrain,road surface etc.) 3.Max load: 200KGS 4.Tyres: front 14" *2.125 rear 16"*2.5 5.Front brake: drum brake 6:Rear brake: drum brake 7.Different color is availbale 8.Front fork: steel with suspension 9.Throttle: Twist intelligent speed control 10.With rheostat (adjust max speed from 0km/h to25km/h) 11.With reverse gear
Packaging: Unit packaging: Each in Color Box Packing: Each in a carton box N.W/G.W: 100kgs/110kgs(48V20AH) Qty / Export carton: 1 pc /ctn Export carton dimension: 145X65X110CM 1x20'footer FCL quantity: 20 pcs 1x40'footer FCL quantity: 48pcs 1X40'HQ: 48 pcs
Electronic specification:
Motor
brushless hub motor 500W
Battery
48V20Ah sealed lead-acid battery All battery with electric protection circuit
Dashboard
common meter
Controller
500W Brushless controller
Charger
110V60HZ
Charging time
8~10 hours
Lamp
common bulb
Electric brake
YES
Performance & Main components:
Max.speed
25km/h
Range
70km (distance by riders weight,terrain,road sufurface etc.)
Max load
200KGS
Tyres
front 14" *2.125; rear 16"*2.5
Front brake
drum brake
Rear brake
drum brake
Color
customer's request
Front fork
steel with suspension
Throttle
Twist intelligent speed control
With rheostat
YES (adjust max speed from 0km/h to25km/h)
With reverse gear
YES
Packaging:
Unit packaging
Each in Color Box
N.W/G.W
100kgs/110kgs(48V20AH)
Qty / Export carton
1 pc /ctn
Qty / Export carton
1 pc /ctn
MOQ:20PCS
Business Terms:
1.The price above are based on MOQ. 2.Lead time:7 days for sample order.25 days for one container. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted. Warranty: 8 months for battery; 1 year for motor; 1 year for controller; 1 year for charger. (The warranty is based on broken not made by human being.) If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.
