Home Ningbo A-ok Trading Co., Ltd. 500W48V Four Wheels Disabled Scooter with Electric Brake (ES-028)

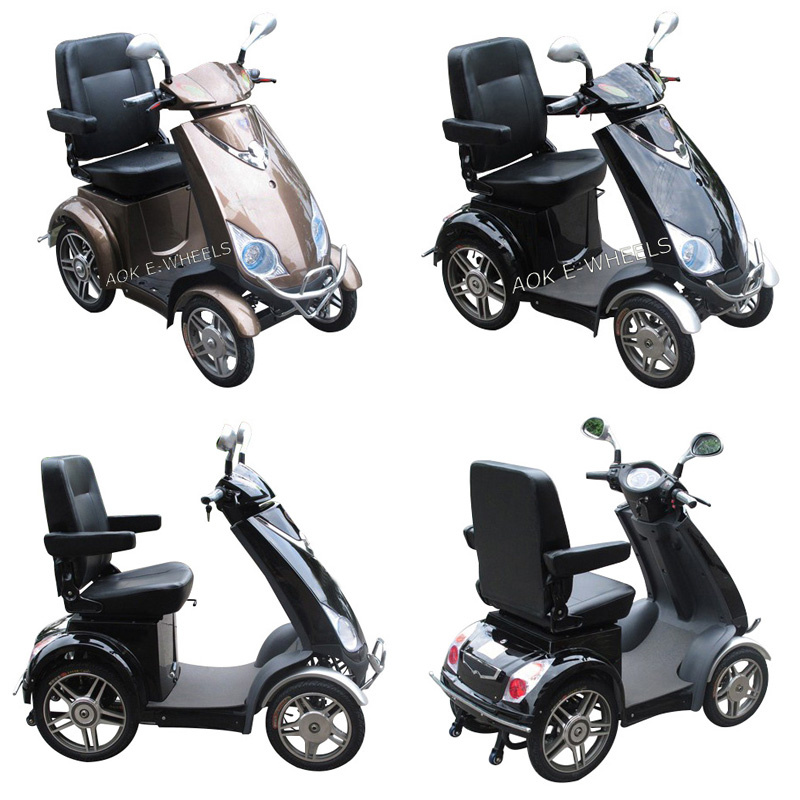

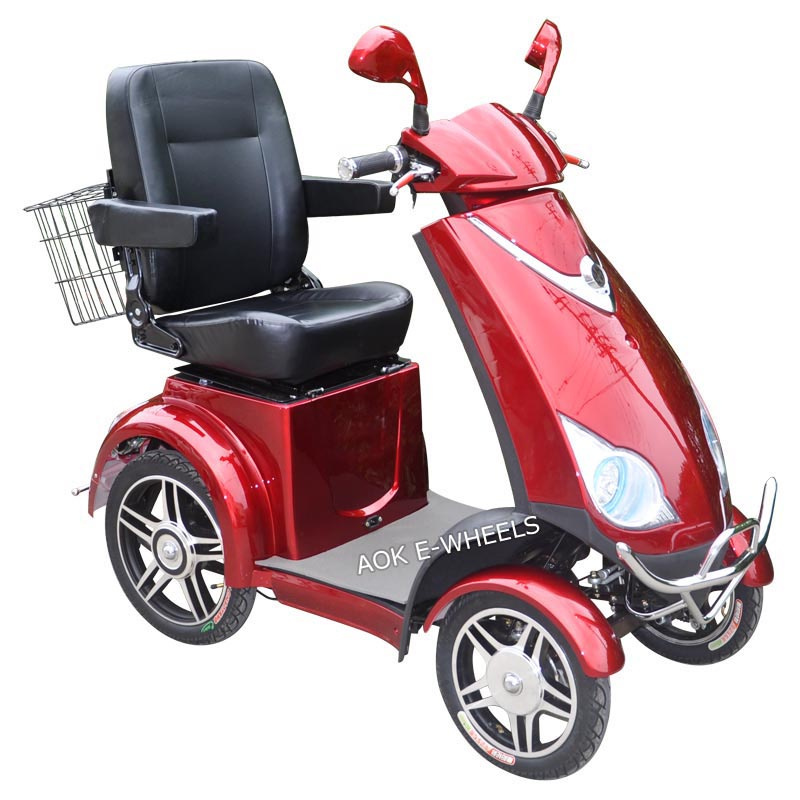

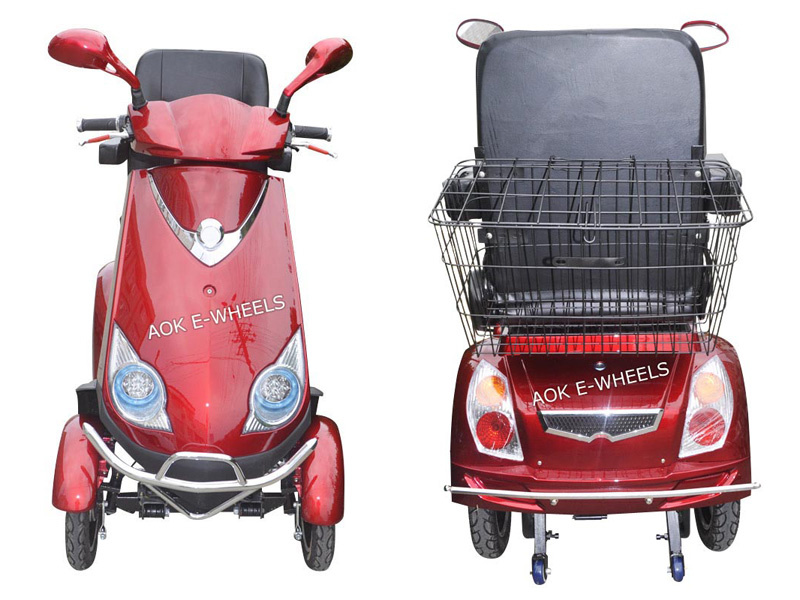

500W48V Four Wheels Disabled Scooter with Electric Brake (ES-028)
| Price: | US $ 650-715/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
Specifications
| Prod Model: | ES-028 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charging Time: | 8~10 Hours |
| With Electric Brake: | Yes |
| Max Load: | 200kgs |
| Brake: | Front Drum Brake/ Rear Drum Brake |
| With Reverse Gear: | Yes |
| N.W/G.W: | 100kgs/110kgs(48V20ah) |
| Export Carton Dimension: | 145X65X110cm |
| Front Fork: | Steel with Suspension |
| Throttle: | Twist Intelligent Speed Control |
| Rear Brake: | Drum Brake |
Product Description
500W48V Four Wheels Disabled Scooter with Electric Brake (ES-028)Electronic specification:
1.Motor: brushless hub motor 500W
2 .Battery: 48V20Ah sealed lead-acid battery
All battery with electric protection circuit
3.Dashboard: common meter
4.Controller: 500W Brushless controller
5.Charger:110V60HZ
6.Charging time: 8~10 hours
7.Lamp: common bulb
8.With electric brake
Performance & Main components:
1. Max.speed: 25km/h
2. Range: 70km(distance by riders weight,terrain,road surface etc.)
3.Max load: 200KGS
4.Tyres: front 14" *2.125 rear 16"*2.5
5.Front brake: drum brake
6:Rear brake: drum brake
7.Different color is availbale
8.Front fork: steel with suspension
9.Throttle: Twist intelligent speed control
10.With rheostat (adjust max speed from 0km/h to25km/h)
11.With reverse gear
Packaging:
Unit packaging: Each in Color Box
Packing: Each in a carton box
N.W/G.W: 100kgs/110kgs(48V20AH)
Qty / Export carton: 1 pc /ctn
Export carton dimension: 145X65X110CM
1x20'footer FCL quantity: 20 pcs
1x40'footer FCL quantity: 48pcs
1X40'HQ: 48 pcs
Electronic specification:
| Motor | brushless hub motor 500W |
| Battery | 48V20Ah sealed lead-acid battery All battery with electric protection circuit |
| Dashboard | common meter |
| Controller | 500W Brushless controller |
| Charger | 110V60HZ |
| Charging time | 8~10 hours |
| Lamp | common bulb |
| Electric brake | YES |
Performance & Main components:
| Max.speed | 25km/h |
| Range | 70km (distance by riders weight,terrain,road sufurface etc.) |
| Max load | 200KGS |
| Tyres | front 14" *2.125; rear 16"*2.5 |
| Front brake | drum brake |
| Rear brake | drum brake |
| Color | customer's request |
| Front fork | steel with suspension |
| Throttle | Twist intelligent speed control |
| With rheostat | YES (adjust max speed from 0km/h to25km/h) |
| With reverse gear | YES |
Packaging:
| Unit packaging | Each in Color Box |
| N.W/G.W | 100kgs/110kgs(48V20AH) |
| Qty / Export carton | 1 pc /ctn |
| Qty / Export carton | 1 pc /ctn |
MOQ:20PCS
Business Terms:
1.The price above are based on MOQ.
2.Lead time:7 days for sample order.25 days for one container.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.
Warranty:
8 months for battery;
1 year for motor;
1 year for controller;
1 year for charger.
(The warranty is based on broken not made by human being.)
If any inquiries or needs any help, please contact me at any time, i will reply you as soon as possible.
Welcome to contact!13072780901
