Specifications
Prod Model: |
CT-022 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tire Size: |
16-3.0 |
Driving Type: |
Electric |
Certification: |
CE |
Usage: |
Cargo |
Body Type: |
Open |
Displacement: |
No |
Weight: |
160kgs |
Style: |
Midsize |
Product Description

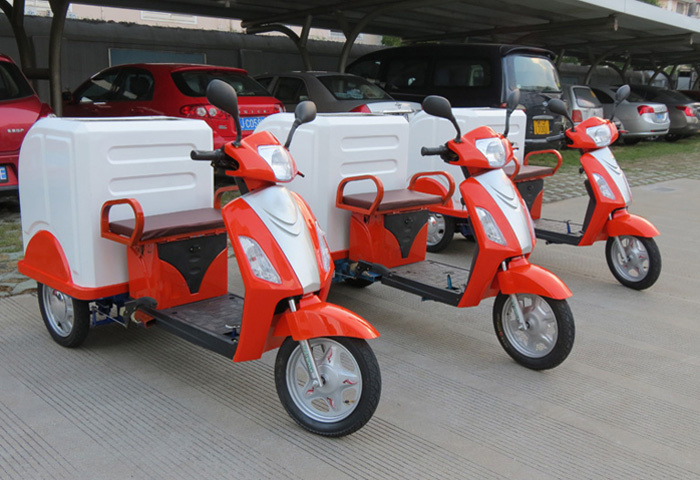

500W~800W Electric Mobility Scooter for Cargo
Specification
Specification: | Motor | Bushless hub motor 500W/800W |
Battery | 48V 20AH sealed lead-acid battery |
Dashboard | Common meter |
Controller | 500W brushless controller |
Charger | 110V60HZ/220V50HZ |
Charging time | 8 hours |
Lamp | Common bulb |
Performance & Main components
Performance & Main components: | Max.speed | 30km/h |
Range | 60km(distance by riders weight,terrain,road sufurface etc.) |
Max load | 300kgs |
Tyres | 16-3.0 |
Front brake | Drum brake |
Front fork | Hydraulic pressure |
Rear brake | Drum brake |
Climbing angle | <=18 degrees |
Throttle | Twist intelligent speed control |
With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h) |
With reverse gear |
Different colors are available |
Packaging&Delivery
Packaging Details: | Unit packaging | Each in a carton box |
Net weight | 140kgs |
Gross weight | 160kgs |
Export carton dimension | 2.61x1.13x1.1m |
Delivery Details: | 15 working days for samples, 20~25 days for bulk. |
