Specifications
Prod Model: |
KQkart001C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission: |
Shaft |
Start-up: |
Electric |
Certification: |
EEC |
Displacement: |
500cc |
Maximum Speed: |
80 Km/H |
Product Description

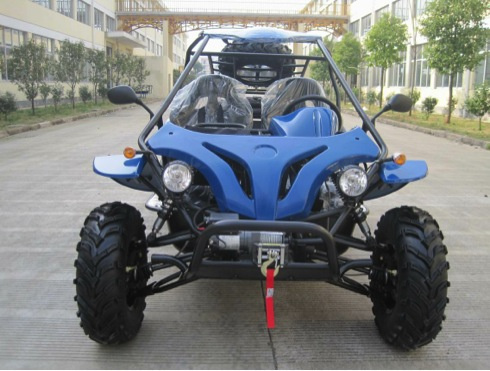

Go Kart 500cc Go Kart Off Road Go Kart
Go Kart EEC Go Kart
Go Kart EEC DUNE BUGGY
CVT Go Kart EEC
Go Kart Racing Go kart
Wheel base |
2340mm |
Total net weight |
450kg |
Rider |
double |
Engine Type |
500cc,single cylinder,4-stroke,water-cooled |
Cylinder bore |
87.5mm |
Pmax |
24km/6500r/min |
Tmax |
38.8N.m/5500r/min |
Start mode |
electric |
Power source |
battery 12v 18HA |
Fuse |
15A |
Spark plug |
DPR&EA-9 |
Spark gas |
0.8-0.9mm |
Lubrication |
force and splash |
Displacement |
493ML |
Comperession ratio |
10:01 |
Lgnition |
CDI |
Top speed |
80km/h |
Starting |
15s |
Parking trig |
mechanical lock |
Fuel |
RQ-90(leasdless) |
Lubricate oil brand |
SAE15w-40/SF |
Gas tank capacity |
16L |
Engine oil capacity |
2.2L |
Headlight |
12v35w |
Taillight |
12v21w/5w |
Climb capacity |
18` |
Distance between wheels |
front:1340mm;rear:1340mm |
Seat distance |
450mm |
front brake |
hydraulic disc brake by foot control |
rear brake |
hydraulic disc brake by foot control |
front tyre |
25x8-12 |
rear tyre |
25x10-12 |
Transmission |
shaft |
Packing method |
stury iron frame add carton |
Carton dimensions |
3000*1680*880mm |
Conveyance |
Qty20`/6 ; Qty40`hq/12 |
Color |
red,yellow,orange,bule,silver,black,white |
Wheel hub |
aluminum |
Front/rear tire |
road tire,cross-country tire |
Rearview mirror |
with EC,or without EC |
Headlight |
four hedalighs with EC |
Frame |
steel tube |
front suspension |
double A arm |
rear suspension |
swing type |
