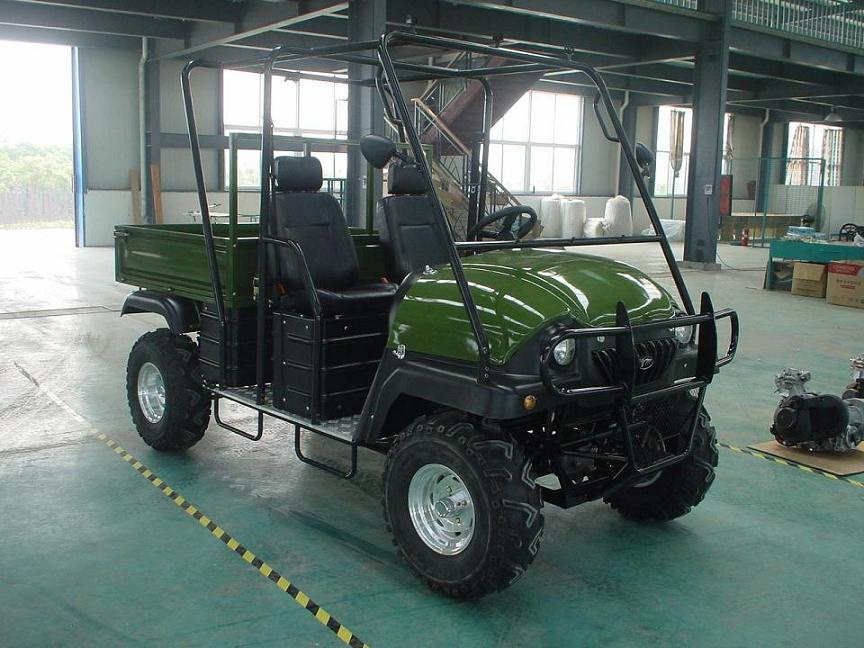

Home Jiangsu Yuantong Auto Parts Co., Ltd. 500cc 2WD/4WD Farm Kart with Four Seats
Specifications
| Prod Model: | YTK500-UTV-B |
|---|
Product Description
500cc 2WD/4WD Water-Cooled Utility Truck/Cart with Four Seats1. Dimensions (L x W x H): 3360x 1470 x 2050mm
2. Proper mass of empty vehicle: 610kg (G. W.: 660kg)
3. Wheelbase: 2185mm
4. Front track: 1215mm
5. Rear track: 1224mm
6. Ground clearance: 190mm
7. Front tire: 24 x 8 - 12
8. Rear tire: 24 x 8 - 12
9. Engine type: single cylinder forced water-cooled and 4-stroke
10. Engine displacement: 493ml
11. Bore x Stroke: 87.5mm x 82mm
12. Engine output power: 24kw/6500 r/min
13. Engine maximum torque: 38.8N. m/5500r/min
14. Engine starting: electric
15. Transmission system: Automatic power-drive, with 2WD/4WD
16. Fuel tank: 25L
17. Climbing: 30°
18. Highest speed: 60km/h
19. Brake track: < 7m at 30km/h
20. Load capacity: 600kg
21. Packing Size: 2960 x 1550 x 1150mm
22. Conveyance: Qty/20'' 4 sets, Qty/40''FT 12 sets
