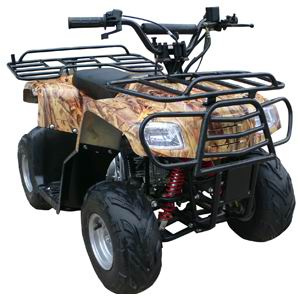

50/70/110cc 4-Stroke, Air-Cooled ATV (Bl-220)

Specifications

Prod Model:	BL-220 RED

Product Description

Specification:
Displacement: 50cc/90cc/110cc
Length x Width x Height: 1230*710*830
Wheelbase: 750
Wheel track(mm) Front: 515 Rear: 570
Seat height: >560
Minimum ground clearance: >80
Mode of suspension: Front: Double swing arm: Independent suspension
Transmission: Chain
Tire: Front: 145/70-6, rear: 145/70-6
Battery: 12V-5A. H
Weight: 79
Maximum load 100kg
Fuel tank: 4.5L
Maximum speed: 65km/h
Turning radius(mm): 2100
Engine: Single cylinder four stroke air cooled starting engine above
Starting mode: Electric starting
Gear: AUTOMATIC
Clutch: Automatic
Maximum power(kw/rpm): 2. 3kw/7000rpm
Max torque: 3. On. M/5500-6500rpm
Bore*stroke: 39. 0*41. 4
Ignition: C. D. I
Fuel: >93#
Lubrication: Press and splash
Ubrication capacity: 0. 9L
Container: 40HQ/120PCS
