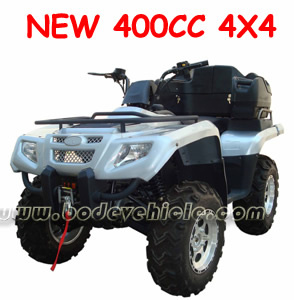

4x4wd 400CC EEC ATV
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
| Pay Type: | T/T,Western Union |
Specifications
| Prod Model: | MC-393 |
|---|
Product Description
400CC 4x4 ATV Dimension (LxWxH) 2100x1210x1200mmWheelbase 1320mm
Tread(front) 920mm
Tread(rear) 935mm
Ground clearance 280mm
Seat height 920mm
Dry weight 320kgs
Gross Weight 345kgs
Fuel tank 13L
Max speed 78km/h
Brake system front/rear Disk/Disk
Gearshift mode Automatic clutch, five speed, one neutral with inside reverse gear
Transmission mode Shaft
Drive system 4WD-2WD
Tire front 25x8-12&24x8-12
Tire rear 25x10-12&24x9-11
Cargo front 66lbs(30kg)
Cargo rear 133lbs(60kg)
Tow weight limit 3376N(385kgf/850lbs)
Tongue weight 137N(14kgf/30lbs)
Engine
Engine model 179F
Efficient Capacity 359ml
Engine type 4-stroke, Single-Cylinder
Cooling system water -cooled
Rated power and rotate speed 13.5kw/5500rpm
Max torque and rotate speed 24N. M/4000rpm
Economical oil consumption (L/100km)
<=5
Electrical
Battery 12V-14Ah
Starting system Electric/Hand-pull
Ignition DCDI
ATV and go kart HS code: 8703101100
Carton size: 2320*1270*850mm
