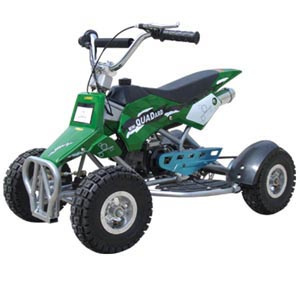

49cc, Single Cylinder, 2-Stroke, Air Cooled, ATV (ATV-001 )
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | ATV-001 |
|---|
Product Description
Name: ATVItem No.: ATV-001
Details: 1) Engine: 49cc, single cylinder, 2-stroke, air cooled
2) Transmission system: chain drive through automatic clutch
3) Dimensions (L x W x H): 980¡Á580¡Á580mm
4) Max. Power: 2.5kW/8700rpm
5) Max. Torque: 3.2N. m/8000rpm
6) Compression ratio: 7.6: 1
7) Ignition: contactless
8) Tires: front 3.00-4, rear 3.00-4
9) Wheel rims light alloy, front 4"-51, rear 4"-95
10) Tank capacity: 1L
11) Fuel/oil unleaded petrol: 25: 1, 2-stroke
¡¡¡¡¡¡Engine oil mixing
12) Brake: rear disc brake
13) Max. Load: 95kg
14) Max. Speed: 40km/h
15) Transmission system: chain drive through automatic clutch
16) Start: pull start
17) Colors available: red, blue, yellow, black, green, orange
18) G/N weight: 34/30kgs
19) Conveyance:
¡¡¡¡ Qty/20" FCL: 96pcs
¡¡¡¡ Qty/40" FCL: 192pcs
