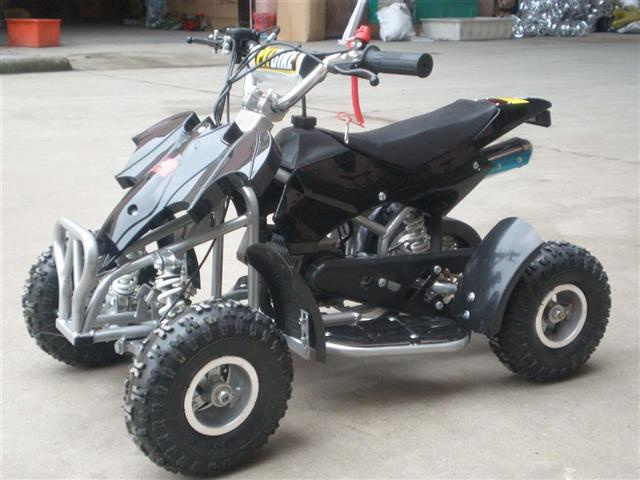

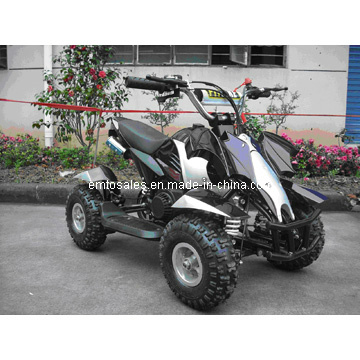

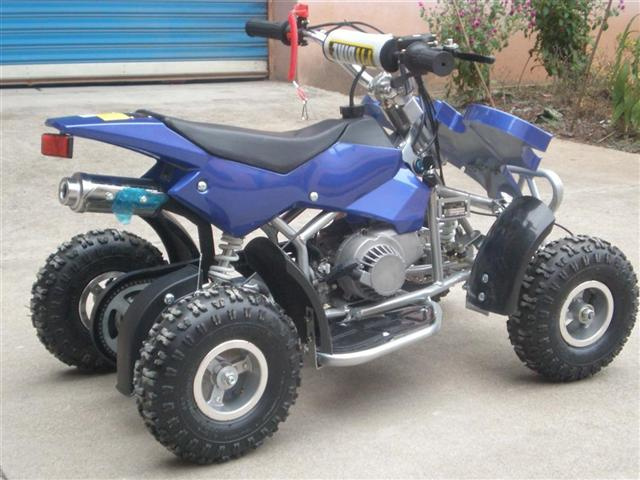

49cc off Road Kids Mini ATV Quad (et-atvquad-10)
| Price: | US $ 124-145/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | ET-ATVQUAD-10 49cc mini atv quad |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design: | Factory Own Design |
| Engine: | 49cc 2 Stroke Air Cooled |
| Color: | 6 Color Can Choose |
| Mini Order Quantity: | 20PCS |
| Transmission Type: | Manual |
| Engine Type: | 2 Stroke |
| Structure: | Without Door |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | <50 km/h |
| Certification: | CE |
| Condition: | New |
| Displacement: | 49cc |
| Power: | Gasoline |
| Brand: | Emto |
Product Description
Product: ATVModel: Et-atvquad-10
Engine Type: 49CC air-cooled, single cylinder, 2-stroke OilType petrol, 1: 25 engine oil mixing
Fuel Tank Capacity 1L
Driving Mode: Chain
Starting System: Pull start
Tire (front/rear) 4.10-8NHS/13*5.00-8NHS
Brake System disc brake(manual)
Suspension front/rear suspension
Rated Power and Rotate Speed 1.8kw/7500rpm
Max Torque and Rotate Speed 3.5n. M/6000rpm
Dimension 1040*640*710mm
Max Speed 50km/h
Max Loaded 95kgs
Carton Size 1050*620*500mm
G. W: 48kgs, N. W: 42kgs
Load qty: 88PCS /20ft, 230 PCS/40hq.
| 2. Starting system: pull start | |||||
| 3. Max. torque and rotate speed: 3.5N.m / 6,000rpm | |||||
| Chassis: | 1. Brakes (Front/Rear): disc | ||||
| 2. Absorber (front/rear):Spring - absorber | |||||
| 3. Tires(Front/Rear): 4.10x10-4/4.10x10-4 | |||||
| 4. Drive train: Chain Fuel capacity: 1L | |||||
| Dimensions: | 1. Wheel base:600mm Seat height:530mm | ||||
| 2. Ground clearance:110mm | 3. N.W: 33kg G.W:41kg | ||||
| 4. Carton sizes:990 x 580 x 500mm | |||||
| Other: | Max speed: 45km/h Max load capacity: 80Kgs | ||||
| container: | Qty/20Fcl:88pcs | Qty/40Fcl:184pcs | Qty/40HQ:240pcs |
