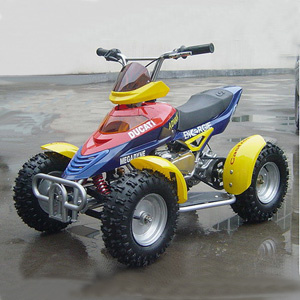

49cc Kids ATV (TS-ATV49-6)

Specifications

Prod Model:	TS-ATV49-6

Product Description

Engine Type: Single cylinder, 2 stroke, air cooled
Final Drive: Chain drive
Bore x Stroke(mm): 39 x 41.4
Piston Displacement(cc): 49
Tank capacity: 1L
Maximum Power(kw/r/min): 2.5kw/8500rpm
Max Torque(N. M/r/min): 3.0N. M/6500r/min
Starter Sytem: Hand pull start
Trasmission: Automatic
Overall LxWxH(mm): 1040x640x710mm
Packing Dimesion LxW xH (mm): 1030x580x490mm
Wheel Base(mm): 680
Seat Height(mm): 450
Ground Clearance(mm): 100
Brake(Front/Rear) r: Ear/disc
Tire, Front: 13X4.10-6NHS
Tire, Rear: 13X5.0-6NHS
Ignition Type: CDI
Fuel Tank Capacity (L): 2.5
Engine Oil Capacity(L): 0.95
Distance(front/rear wheel): 505mm
Distance(axle): 695mm
Front suspension: Leading arm
Rear suspension: Swing arm
Max Speed(km/h): 50km/h
Max gradability(degree): 16
Max. Load Capacity(kg): 80kg
Cover new model
Oil type: 1: 25 oil engine mixtures
NW(kg): 45
GW(kg): 50
Quantity of Loading: 120pcs 20'ft; 240pcs 40'ft; 270pcs 40; Hq
