Specifications
Product Description

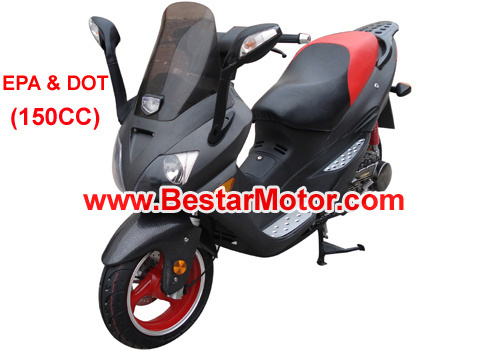

RS-807Displacement: | 49.2CC | 150CC | |
Product size (mm): | 2015 X 680 X 1202 | 2030 X 700X 1200 | |
Wheelbase (mm): | 1441 | 1380 | |
Seat Height (mm): | 810 | ||
Ground clearance (mm): | 90 | 105 | |
Max. load (kg): | 85 | 150 | |
Engine style: | 2-stroke , air-cooling | 4-stroke, air-cooling | |
Bore X Stroke (mm): | 39.0 X 41.5 | 56.5 X 57.8 | |
Max Power (Kw/r/min): | 2.2/7000 | 7.15/7500 | |
Max Torque (N.m./r/min): | 3.0/6000 | 8.5/6000 | |
Start mode: | Kick/Electric | ||
Ignition: | CDI | ||
Tank (L): | 7. 5 | 8.5 | |
Tire (Front / Rear): | 120/70-12 | 130/60-13 | |
Front brake: | Disc by hand | ||
Rear brake: | Disc by hand | Disc by hand | |
Battery : | 12V/7Ah | ||
Max Speed (Km/h): | 45 | 90 | |
Fuel consumption (L/100km): | 2.0 | 2.9 | |
Net weight (kg): | 122.5 | 125 | |
Gross weight (kg): | 145 | 150 | |
Carton size (cm): | 198 X 57.5 X 120 | 192 X 58 X 96 (front wheel, front fender, handle bar, rear rack, etc. are not assembled) | |
Container capacity: | 11pcs/20’GP, 23pcs/40’GP, 48pcs/40’HC | 24pcs/20’GP, 48pcs/40’GP, 48pcs/40’HC | |
Option: | 125CC engine (EEC), Trunk (not free) |
