Home Ningbo A-ok Trading Co., Ltd. 40V500W Folding Electric Mobility Scooter (ES-048B)

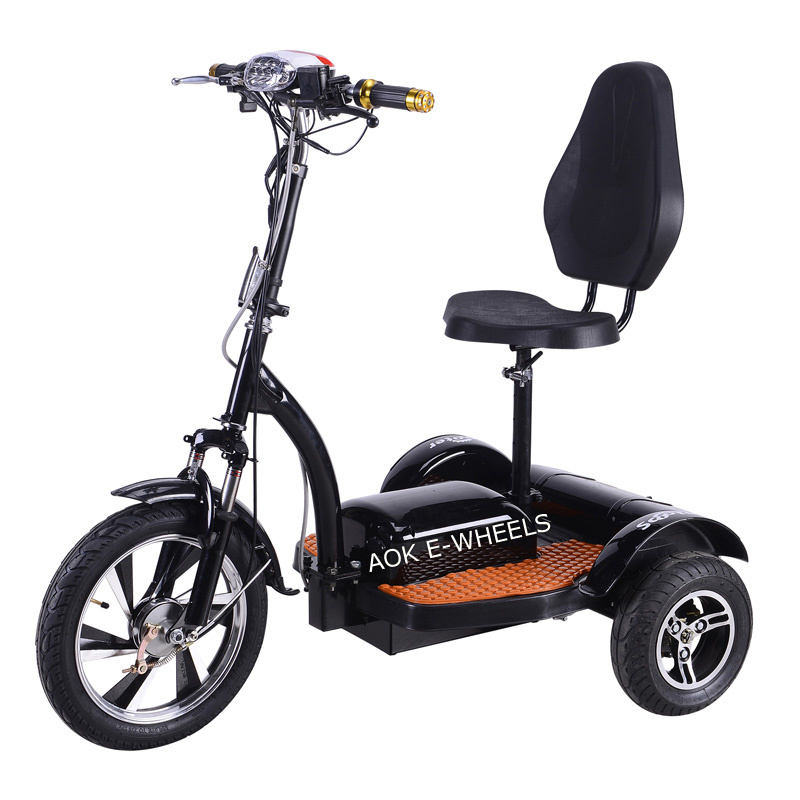

40V500W Folding Electric Mobility Scooter (ES-048B)
| Price: | US $ 412-453/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
Specifications
| Prod Model: | ES-048B |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| With Seat: | Yes |
| With Backrest: | Yes |
| With Slow And High 2 Different Speeds: | Yes |
| With Reverse Gear: | Yes |
| Rear Axel Width: | 70cm |
| Color: | Yellow, White, Black,Silver,Red,Blue,etc |
| N.W./G.W: | 92/98kg |
| Tyre: | Air Tyre, Front 16 Inch, Rear 12 Inch |
| Installation Way: | Screw Nut |
| Frame: | High Tensile Steel |
Product Description
40V500W Folding Electric Mobility Scooter (ES-048B)Electronic specification:

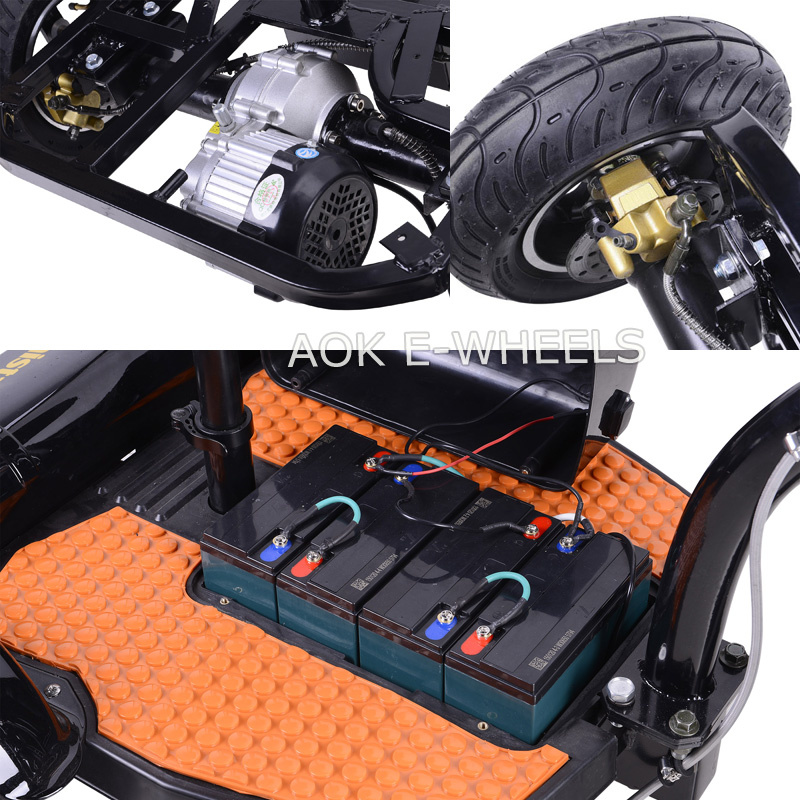

1.Motor: 48V 500W, 20AH brushless motor
2.Battery:48v 20AH lead acid battery
3.Controller: brushless 48v,500w
4.Input voltage: 110 volt
5.Charge time: 8-10 hours
6.With front lights: LED light
Performance & Main components:
1.Max speed: 32km/h(USA&Canda)
2.Range: 70-80kms
3.Load capacity: 150kgs
4.Tyre size: 110/50-6.5
5.Tyre: air tyre, front 16 inch, rear 12 inch
6.Frame: high tensile steel
7.Folding: YES
8.With slow and high 2 different speeds
9.With seat
10.With backrest
11.With reverse gear
12.Drive: rear axel with BLDC motor
13.Brake: front wheel drum brake, rear wheel Hydraulic disc brake
14.Installation way: screw nut
15.Rear axel width: 70cm
16.Color:yellow, white, black,silver,red,blue,etc
17.N.W./G.W.: 92/98kgs
Electronic specification:
| Motor | 48V 500W, 20AH brushless motor |
| Battery | 48v 20AH lead acid battery |
| Controller | brushless 48v,500w |
| Input voltage | 110 volt |
| Charge time | 8-10 hours |
| With front lights | LED light |
Performance & Main components:
| Max speed | 32km/h |
| Range | 70-80kms |
| Load capacity | 150kgs |
| Tyre size | 110/50-6.5 |
| Tyre | air tyre, front 16 inch, rear 12 inch |
| Frame | high tensile steel |
| Folding | YES |
| Different speeds | With slow and high 2 different speeds |
| With seat | YES |
| With backrest | YES |
| With reverse gear | YES |
| Drive | rear axel with BLDC motor |
| Brake | front wheel drum brake, rear wheel Hydraulic disc brake |
| Installation way | screw nut |
| Rear axel width | 70cm |
| Color | yellow, white, black,silver,red,blue,etc |
| N.W./G.W. | 92/98kgs |
Business Terms:
1.The price above are based on MOQ.
2.Lead time:7 days for sample order.25 days for one container.
3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed.
4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample.
2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3.L/C at sight(when the amount above 30000 dollars)
4.Paypal and Western Union are also accepted.
Warranty:
8 months for battery;
1 year for motor;
1 year for controller;
1 year for charger.
(The warranty is based on broken not made by human being.)
