Specifications
Prod Model: |
GBTKD400 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
400ccgo Kart (Gbtkd400): |
400CC Go Kart with EEC Certificate, Automatic CVT |
Transmission: |
Automatic |
Start-up: |
Electric |
Certification: |
EEC |
Displacement: |
400CC |
Maximum Speed: |
>90 km/h |
Product Description

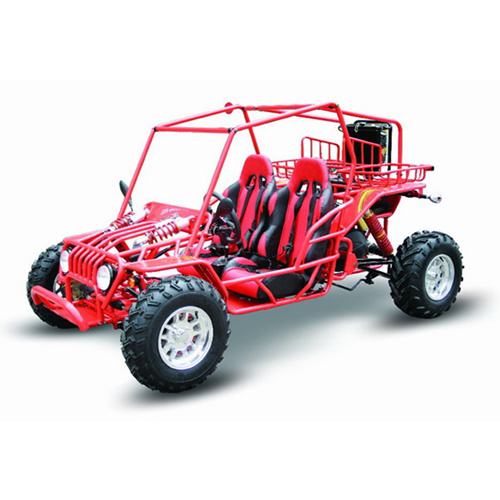

400CCGo Kart (GBTKD400)
Available Color: Red, orange, yellow, dark blue, light blue, green, black, silver
Size: 2910mm x 1560mm x 1515mm
Wheelbase: 2120mm
Front track: 1380mm
Rear track: 1300mm
Ground clearance: 220mm
Engine type: Water-cooled, 4-stroke
Engine capacity: 400CC
Bore x Stroke: 91mm x 61.5mm
Corrected compression ratio: 10.3± 0.1: 1
Max output power: 20kw/6500rpm
Max torque: 32Nm/5500rpm
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Automatic (C. V. T system)
Maximum load: Double seats/200kg
Fuel tank: 16L
Climbing: 20° - 25°
Top speed: 80km/h
Front/Rear brake: Hydraulic disc, right foot control
Front/Rear tire: AT25X8-12 / AT25X10-12
Restraint System: Dual 4-point Harness
Final drive: Shaft drive
Carton size: 1490mm x 1120mm x 2560mm
Net weight: 425kg Gross weight: 483.5kg
Quantity: 15PCS/40HQ; 8PCS/40GP; 4PCS/20GP
