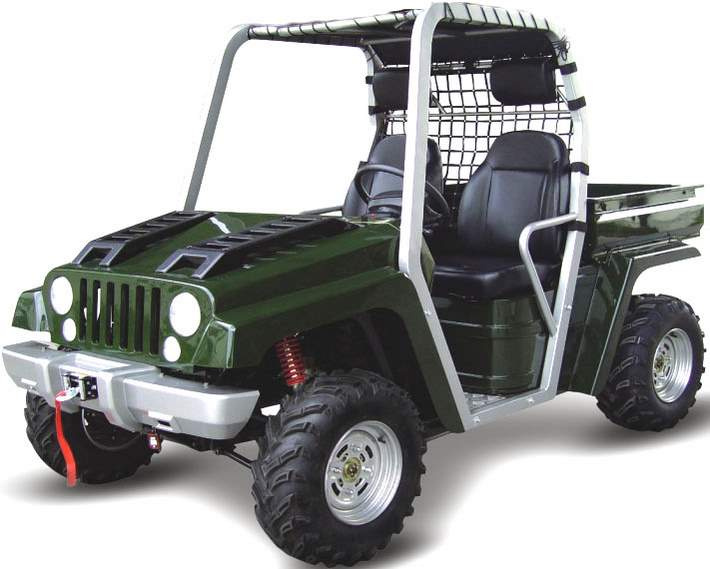

400cc Water Cooling Shaft Drive EEC Utility Vehicle (QYUV400-1)

Specifications

Product Description

Production Size: 2850mm*1470mm*1880mm
Wheelbase: 1820mm
Front track: 1180mm
Rear TRack: 1210mm
Ground clearance: 270mm
Type: Water cooled 4 stroke
Engine Capacity: 400cc
Borexstroke: 91mm*61.5mm
Corrected compression ratio: 11.2: 1
Max output power: 2.3kw/8000rpm
Nax torque: 32Nm/6700N. M/r/min
Starting: Electric
Ignition: C. D. I
Lubrication: Force&splash
Maximum load: Double seats/200kg
Fuel tank: 18L
Climbing: 20-25
Top speed: 70KM/H
Front, rear brake: Hydraulic disc. Left foot control
Front/rear tyre: AT25*8-12/AT25*10-12
Front/rear suspension: Independent Dual A-armar restraint
Final Drive: Shaft drive
Carton Dimensions: 2360*1280*890mm
N. W 480kg G. W495kg
QTY/40HQ: 24 QTY/20' GP: 7
