400cc Quad Bike 4X4 ATV
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | KINGMAX 400S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling System: | Water Cooled |
| Final Drive: | Shaft Drive 4WD |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Maximum Speed: | >75 km/h |
| Brake Type: | Disc Brake |
| Displacement: | 400CC |
Product Description

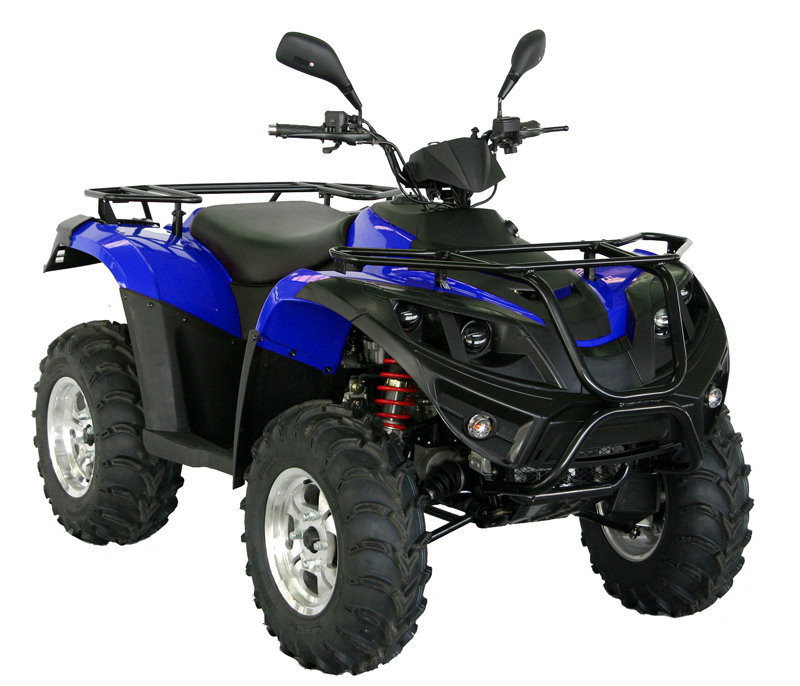

400cc Quad Bike 4X4 ATV
1. MAIN FEATURES:
- Water-cooled 400CC Engine
- CVT Automatic with High-Low
- Shaft Drive, 2WD & 4WD Switch

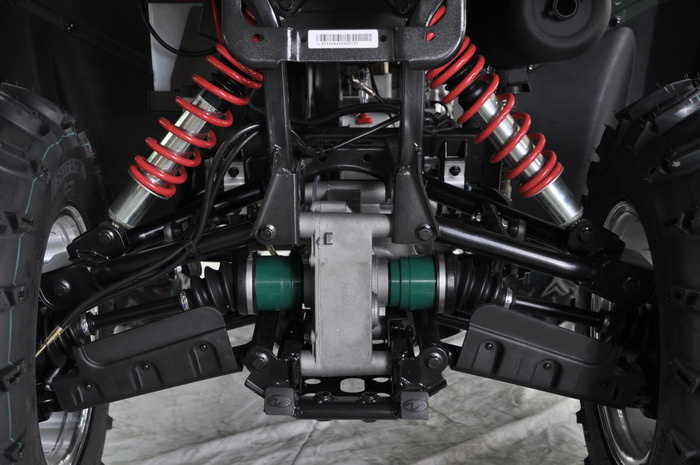

- Independent Rear Suspension (IRS)
2. SPECIFICATION:
| ENGINE | |
| Engine Type | 1 Cylinder, 4 Stroke, SOHC |
| Engine Displacement | 351.9cc |
| Bore x Stroke | 80 X 70mm |
| Fuel System | Carburetor |
| Cooling System | Liquid-Cooled |
| Ignition | T. C. I |
| Max. Power Output | 19kw/7000r/min |
| Max. Torque | 27N. M/5500r/min |
| Fuel Capacity | 15L |
| Lubrication System | Splash & Press |
| Starting System | Electric Start |
| Transmission Mode | Automatic CVT with H/L/N/R |
| Final Drive | Shaft Drive 4WD |
| Shift Switch(2WD/4WD) | YES |
| Battery | 12V 14Ah |
| Wheels & Brakes | |
| Tyres Front | 25X8-12 |
| Tyres Rear | 25X10-12 |
| Parking | Mechanics Parking Brake |
| Suspension Front | MacPherson Independent Suspension |
| Suspension Rear | Twin-A Arm Independent Suspension |
| Brakes Front / Rear | Hydraulic Disk Brake |
| Dimensions & Weight | |
| Product Dimension(LxWxH) | 2, 110x1, 140x1, 200mm |
| Carton Dimension(LxWxH) | 2, 280x1, 180x860mm |
| Seat Height | 915 mm |
| Wheelbase | 1, 280mm |
| Ground Clearance | 230mm |
| Dry Weight | 330kg |
| Gross Weight | 395kg |
| Container Loading | 8 Units/20' GP 30 Units/40' HQ |
