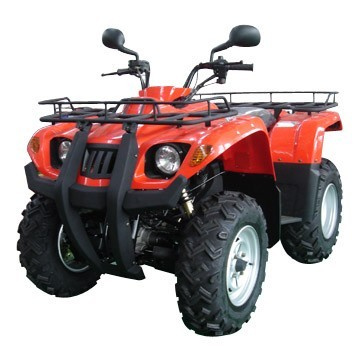

400cc EEC ATV(FA400I-E)

Specifications

Prod Model:	FA400I-E

Product Description

Specifications:
1) Engine type: single cylinder, air-cooled, 4-stroke
2) Power: 16KW/6,500rpm
3) Max. torque: 26N.m/5,000rpm
4) Min. ground clearance: 210mm
5) Wheel base: 1,240mm
6) Fuel tank capacity: 14L
7) Transmission mode: Axis
8) Start mode: electric/manual
9) Tires:
a) Front wheels: 25 x 8-12
b) Rear wheels: 25 x 10-12
10) Max. speed: 75km/h
11) Break type (F / R): disc / drum
12) Power source: 12V, 20Ah
13) Height of seats: 860mm
14) Dry weight: 330kg
15) Load capacity: 220kg
16) Climbing degree: 22
17) Front hanging: double arm-swing
18) Rear hanging: integral
19) Cylinder size: 83 x 71.6mm
20) Displacement: 387.4ml
21) Transmission: 5 gears with one reverse gear, one neutral-gear,
automatic clutch
22) Min. turning radius: 2,900mm
23) Driving Mode: 4WD
24) Ignition mode: CDI
25) Engine oil: 2.9L
26) Gear oil:
a) Front tank: 0.4L
b) Rear tank: 0.25L
27) Max. number of riders: 2
28) Lubrication: press splash
29) Compression proportion: 8.7: 1
30) Gas cylinder number: 1
31) Product dimensions (L x W x H): 2,100 x 1,125 x 1,175mm
Outer packing:
Carton dimensions: 2,150 x 1,160 x 880mm
