Specifications
Prod Model: |
GBT400ATV-6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
400CC ATV (Gbt400ATV-6): |
Transmission: F-N-R |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Structure: |
Without Door |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Displacement: |
400CC |
Product Description

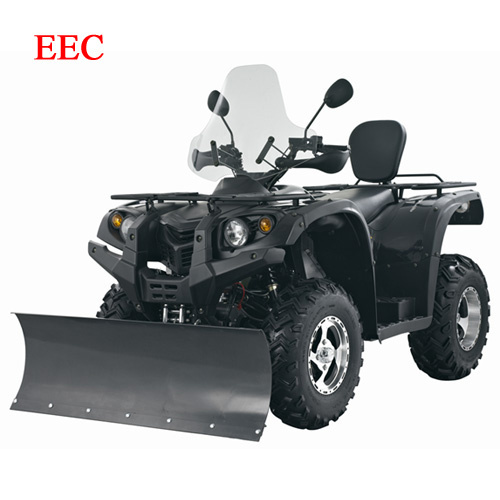

400CC ATV (GBT400ATV-6)
Specifications
ENGINE
Type: 387CC, Water cooled, 4-stroke, 1-cylinder
Bore x Stroke: 83mm x 71.6mm
Compression Ratio: 9.5: 1
Carburetion: PD36J
Ignition: CDI
Starting: Electric/pull start
Transmission: F-N-R
Drive Train: Axle
CHASSIS
Suspension: Independent double swing arm
Suspension/Rear: Single swing arm
Brakes/Front: Dual ventilated hydraulic disc
Brakes/Rear: Ventilated Hydraulic disc
Tires/Front: AT25 x 8-12 radial
Tires/Rear: AT25 x 10-12 radial
DIMENSIONS
L x W x H: 2200mm x1300mm x 1270mm
Seat Height: 870mm
Wheelbase: 1365mm
Ground Clearance: 260mm
Fuel Capacity: 17L
Dry Weight: 310kg
Loading Quantity: 8PCS/20'GP; 18PCS/40'GP; 27PCS/40'HQ
OTHER
Lighting: 12V35W/35W x 2, 12V5W x 2(front); 12V. 5W/21W x 1(rear)
