Specifications
Prod Model: |
ZC-ATV-19 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Displacements(Cc): |
400cc 4WD |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Displacement: |
>400CC |
Transmission System: |
Shaft Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
>75 km/h |
Certification: |
EEC |
Product Description

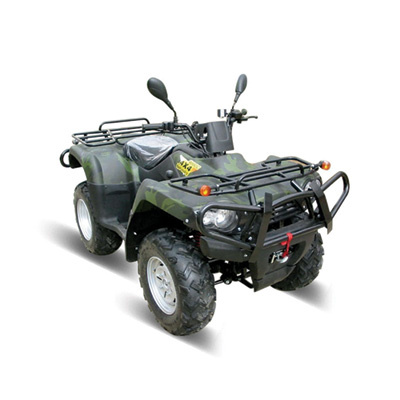

ZC-ATV-19
Engine: 400CC, water-cooled
Max torque and rotate speed: 26N. M/600r/min
Rated power and rotate speed: 17.2kw/7600r/min
Starting method: Electric
Transmission: 4-drive/shaft, auto clutch, one front/one reverse
Gearshift mode: CVT/reverse
Dimension(LxWxH): 207X115X117.5cm
Seat height(mm): 900
Ground clearance(mm): 200
Max speed (km/h): ≤ 55
Tire size(F/R): 25X8-12/25/10-12
Climbing degree: 13L
Degree: ≥ 35°
Fuel capacity: 13L
Carton dimensions: 195X116X96cm
G. W. /N. W.: 260kgs/220kgs
Conveyance: 12PCS/20' 36PCS/40HQ
ZC-ATV-20
500ccATV 4X4 /650ccATV 4X4
Engine type: Single cylinder, 4-stroke,
Water-cooled, CVT, r/n/l/h
Displacement: CDI
Start mode: Elecrtic
Max power: 24kw/6300r/min
Max torque: 40N. M/4800r/min
Max speed: 80km/h
Fuel tank capacity: 14L
Transmission: Dual independent shaft driveon-command 2WD/4WD
Brake type: Hydraulic disc brake/hydraulic disc brake
Wheel base: 1350mm
Groud clearance: 290mm
Tires(front/rear): 25X8-12/25X10-12
G. W. /N. W.: 400kgs/350kgs
QTY/20ft: 8units (take down wheels 10units)
QTY40GP: 18units (take down wheels: 20units)
