Specifications
Prod Model: |
MS-002 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Carton Size: |
1420 X 660 X 1250mm |
Driving Type: |
Electric |
Loading Type: |
Sitting Type |
Weight: |
115kgs |
Style: |
Midsize |
Product Description

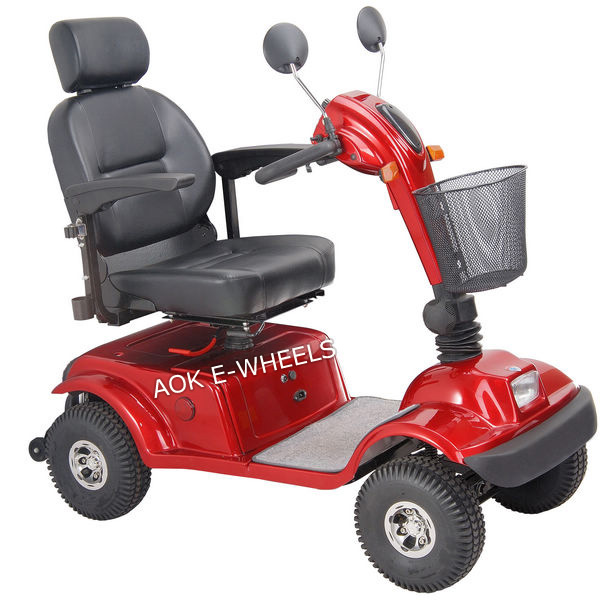

600W 4 Wheel Taiwan Motor Electric Mobility Scooter with PG/Curtis Controller
Specification
Specification Details: | Motor | 24V 600W (Made in Taiwan) |
Battery | 12V 40Ah(50Ah) x 2 lead acid battery |
Controller | PG/Curtis |
Charger | 24V5A battery charger |
Charge time | 6-8h recommended |
Front Tyres | 12"*4.00-4 |
Rear Tyres | 12"*4.00-4 |
Performance & Main components
Performance & Main components: | Max. forward speed | 12.5km/h(adjustable) |
Max. backward speed | 6-8km/h(adjustable) |
Ground clearance | 100mm/ 3.94in |
Turning radius | 1.7m/66.92in |
Braking distance | 1.6m/63in |
Climbing capability | 15° |
Packaging&Delivery
Packaging Details: | Weight capacity | 160Kg/352.74lbs |
Net weight | 105kg/231.5lbs(with 2 batteries) |
Battery weight | 13.8kg/30.43lbs x 2 |
Dimensions | 1420 x 660 x 1250mm |
55.9 x 25.98 x 49.21in. |
Delivery Details: | 40 days |
