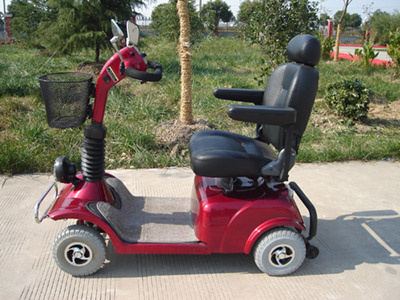

4 Wheel Mobility Scooter (4021)

Specifications

Prod Model:	4021

Product Description

4 wheel mobility scooter

Specifications:
1) Overall length: 47''
2) Overall width: 24''
3) Per-charge range (max. ): Up to 25 miles (varies with passenger weight)
4) Maximum speed: Up to 6mph
5) Turning radius: 57''
6) Total weight, including batteries: 220lbs
7) Weight without batteries: 166lbs
8) Front wheel: 3" x 10"
9) Rear wheel: 3'' x 10''

10) Ground clearance: 3.5''
11) Battery (typical installation): 12 volt deep cycle, U1 (35Ah) select 40Ah
12) Battery (optional sizes): N/A
13) Drive train: Sealed transaxle, 24 volt DC motor
14) Battery weight: 24.5lbs
15) Battery charger: Off-board 5amp charger
16) Weight capacity: 350lbs. Maximum
17) Seat type (standard): High-back recliner w/headrest.
18) Seat coverings available:
19) Brown or gray in vinyl or fabric

20) Standard seat weight: 45lbs.
21) Standard seat width: 18'' usable
22) Standard seat depth: 18'' usable
23) Body colors: (standard) red, blue; Other colors available upon request.
24) Heaviest piece weight: 61lbs. (rear section)
