Home Jiayu Machinery Co., Limited 4-Stroke Gasoline Scooter 150cc (Click-150)

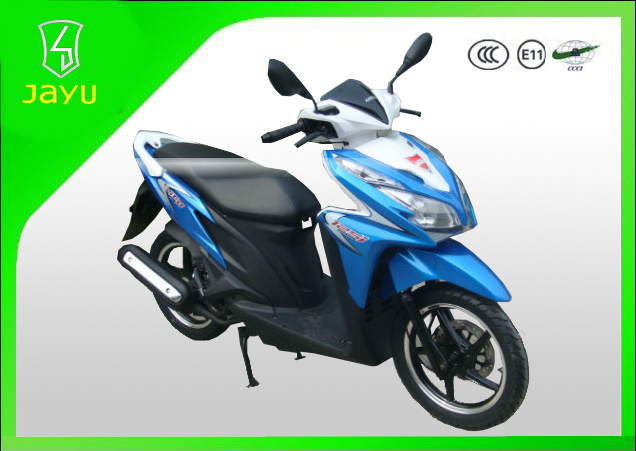

4-Stroke Gasoline Scooter 150cc (Click-150)
| Price: | US $ 520/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 26/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | JY150T-50 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Yellow, White, Red,Blue |
| Engine: | 4 Stroke |
| Certification: | COC |
| Fuel Tank Capacity: | 5-8L |
| Folded: | Unfolded |
| Max Speed: | 150km/H |
| Displacement: | 150cc |
| Maximum Loading Capacity: | 75kg |
Product Description
2014 New model scooter 150cc 1.Fully automatic CVT transmission for easy driving 2.16inch aluminum wheels fit for big person 3.Big size scooter gives safety and comfort for high speed cruising 4.Maintenance-free battery| Scooter body parameter | |
| MODEL | JY125T-50/JY150T-50(Click-125/150) |
| Dimensions (mm): | 2030 x 715 x 1190 |
| Wheel base (mm): | 1455 |
| Ground clearance (mm): | 135 |
| Dry weight / Load capacity: (kg) | 115 / 150 |
| Max.speed (km/h) : | 80 / 85 |
| Economic fuel consuption (1/100km/L) : | 2.8 / 2.9 |
| Exhaust system : | Mute exhaust |
| Fr brake / Rr brake : | disc/drum |
| Fr tyre / Rr tyre : | 70/90-14; 80/90-14 |
| Fuel tank capacity (L) : | 5 |
| Battery | 12V 7AH / 12V 9AH |
| Ignition | CDI |
| Front suspension : | Spring shock |
| Rear suspension : | Spring shock absorber |
| Scooter Engine parameter | |
| Engine mode: | 152QMI / 157QMJ |
| Engine type | 1-cylinder,air-cooled, 4-stroke |
| Displacement (cc) : | 124.6 / 149.6 |
| Cylinder Diameter / Pinston Stroke | 52.4 x 57.8 ; 57.4 x 57.8 |
| Transmission system : | Belt CVT |
| Compression ratio | 10.3:1 |
| Start system : | kick / electric |
| Standard power(km/r/min): | 5.2/7500 ; 6.4/6500 |
| Max. torque(n.m/r/min): | 7.3/6000 ; 8.3/7500 |
| Packing information | |
| N.W / G.W (KG)/Packing model | 98 / 113; |
| Packing model | Full export carton package |
| Packing size(mm) /20GP(CBU) | 1860 X 570 X 1180 / 26PCS |
| Packing size(mm) /40HQ(SKD) | 1700 X 570 X 870 / 84PCS |
