North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charging Time:
6~8 Hours
Max Load:
120kgs
Front Brake:
Drum Brake
Front Fork:
Hydraulic Pressure
Rear Brake:
Expanding Brake
N.W/G.W:
50kgs/56kgs(48V12ah)
Export Carton Dimension:
160X36X100cm
Product Description

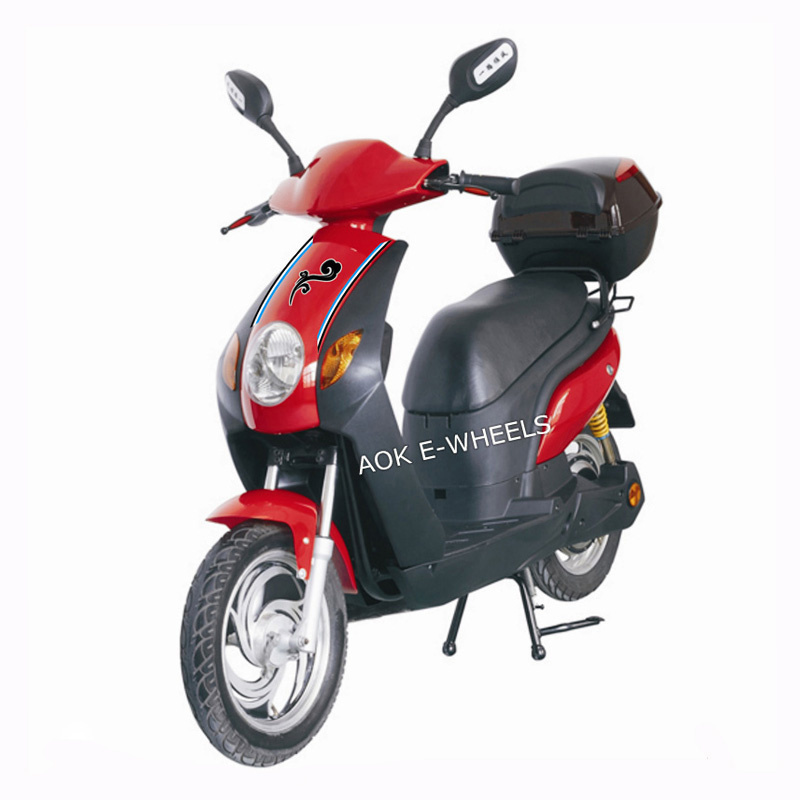

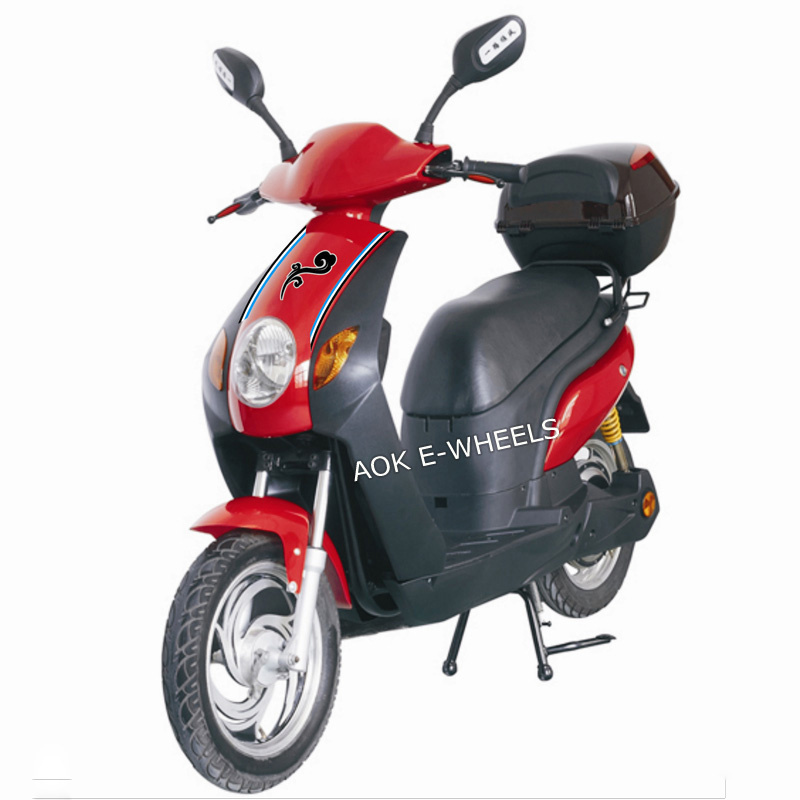

350W/500W Motor Moped Scooter with Pedal (ES-016)
Electronic specification: 1.Motor: brushless hub motor 350W / 500W 2 .Battery: 48V12Ah sealed lead-acid battery All battery with electric protection circuit 3.Dashboard: common meter 4.Controller: Brushless controller 5.Charger:110V 60HZ 6.Charging time: 6~8 hours 7.Lamp: common bulb
Performance & Main components: 1. Max.speed: 32km/h 2. Range: 50KM(48V12AH) 3.Max load: 120KGS 4.Tyres: 16"x2.5 5.Front brake: drum brake 6.Front fork: hydraulic pressure 7:Rear brake: Expanding brake 8.Brake lever: cut-off when braking 9.PAS: with pedal 10.Throttle: Twist intelligent speed control
Packaging: Unit packaging: Each in Color Box Packing: Each in a carton box N.W/G.W: 50kgs/56kgs(48V12AH) Qty / Export carton: 1 pc /ctn Export carton dimension: 160X36X100CM 1x20'footer FCL quantity: 50 pcs 1x40'footer FCL quantity: 96pcs 1X40'HQ: 102 pcs
Electronic specification:
Motor
brushless hub motor 350W / 500W
Battery
48V12Ah sealed lead-acid battery All battery with electric protection circuit
Dashboard
common meter
Controller
Brushless controller
Charger
110V 60HZ
Charging time
6~8 hours
Lamp
common bulb
Performance & Main components:
Max speed
32km/h
Range
50KM(48V12AH)
Max load
120KGS
Tyres
16"x2.5
Front brake
drum brake
Front fork
hydraulic pressure
Rear brake
Expanding brake
Brake lever
cut-off when braking
PAS
with pedal
Throttle
Twist intelligent speed control
Packaging:
Unit packaging
Each in Color Box
Packing
Each in a carton box
N.W/G.W
50kgs/56kgs(48V12AH)
Qty / Export carton
1 pc /ctn
Export carton dimension
160X36X100CM
1x20'footer FCL quantity
50 pcs
1x40'footer FCL quantity
96pcs
1X40'HQ
102 pcs
MOQ:20PCS
Business Terms:
1.The price above are based on MOQ. 2.Lead time:7 days for sample order.25 days for one container. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms:
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted. Warranty: 8 months for battery; 1 year for motor; 1 year for controller; 1 year for charger. (The warranty is based on broken not made by human being.)
