350cc Quad Bike ATV
| Price: | US $ 2850-3500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | ATV350 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bore X Stroke: | 78 X 65.2mm |
| Fuel System: | Carburetor |
| Engine Displacement: | 350cc |
| Ignition: | C.D.I |
| Lubrication System: | Oil Pump Auto Segregation |
| Max. Speed: | 80km/H |
| Battery: | 12V 14ah |
| Seat Height: | 900 Mm |
| Wheelbase: | 1,305mm |
| Ground Clearance: | 253mm |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EPA |
| Engine Type: | 4 Stroke |
| Brake Type: | Disc Brake |
| Condition: | New |
| Brand: | Lannmarker |
| Fuel: | Gas |
| Displacement: | 350cc |
| Maximum Speed: | 80 Km/H |
Product Description

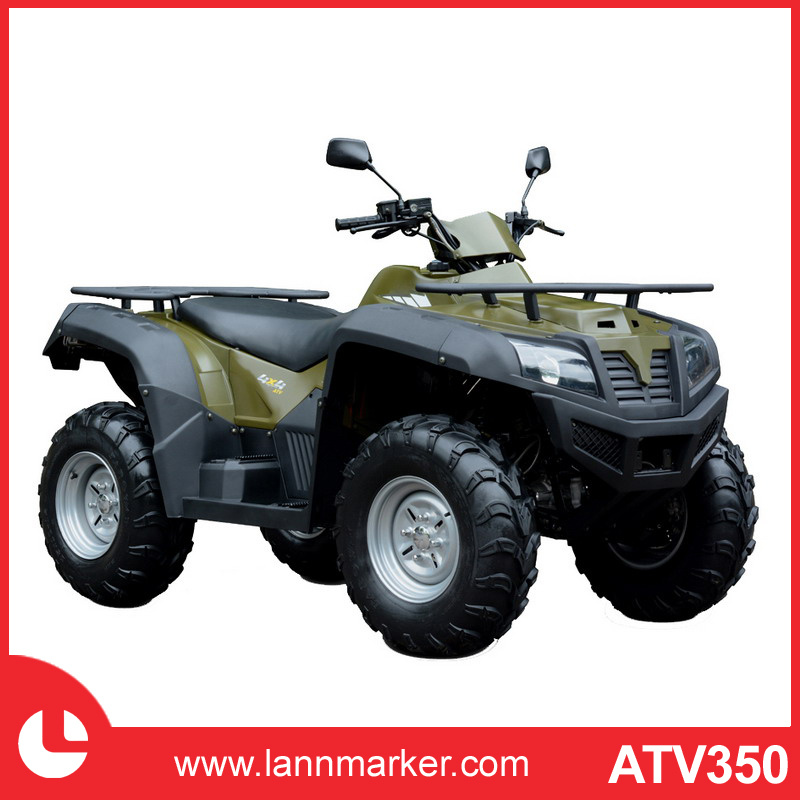

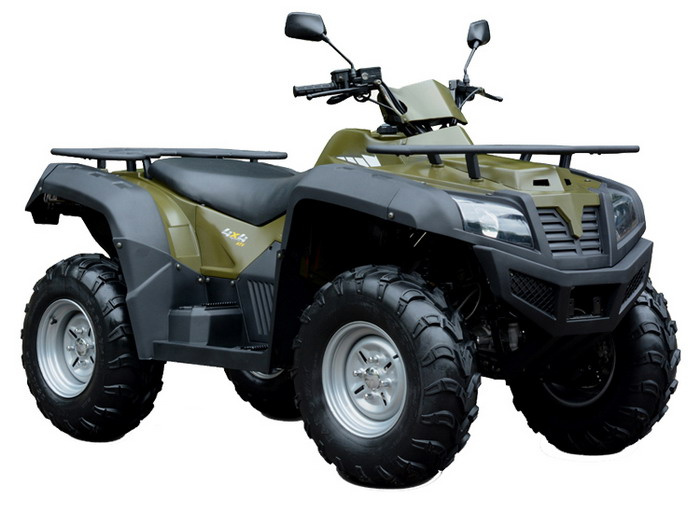

350cc Quad Bike ATV
1. MAIN FEATURES:
- Water-cooled Engine with Balance Shaft
- CVT Automatic with High-Low
- Shaft Drive, 2WD & 4WD Switch
- Independent Rear Suspension (IRS)
- Electric Start & Hand Pull
2. PARTS & ACCESSORIES:
3. SPECIFICATION:
| ENGINE | |
| Engine Type | 1 Cylinder, 4 Stroke, with Balance Shaft |
| Engine Displacement | 312cc |
| Bore x Stroke | 78 X 65.2mm |
| Fuel System | Carburetor |
| Cooling System | Water Cooled |
| Ignition | C.D.I |
| Max. Power Output | 15.2kw/7000r/min |
| Max. Torque | 28N.M/5500r/min |
| Fuel Capacity | 19L |
| Lubrication System | Oil Pump Auto Segregation |
| Starting System | Electric Start & Hand Pull |
| Transmission Mode | Automatic CVT with H/L/N/R |
| Final Drive | Shaft Drive 4WD & 2WD |
| Max. Speed | 80KM/h |
| Battery | 12V 14Ah |
| Wheels and Brakes | |
| Tyres Front | 25X8-12 |
| Tyres Rear | 25X10-12 |
| Parking | Mechanics Parking Brake |
| Suspension Front | MacPherson Independent Suspension |
| Suspension Rear | Single Swing Arm |
| Brakes Front / Rear | Hydraulic Disk Brake |
| Dimensions and Weight | |
| Product Dimension(LxWxH) | 2,250x1,180x1,230mm |
| Carton Dimension(LxWxH) | 2,280x1,180x860mm |
| Seat Height | 900 mm |
| Wheelbase | 1,305mm |
| Ground Clearance | 253mm |
| Dry Weight | 305kg |
| Gross Weight | 350kg |
| Container Loading | 30 units/40'HQ |
