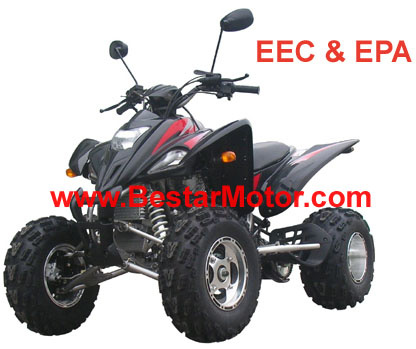

350CC EEC Sport ATV & Quad (350ATV-5)

Specifications

Prod Model:	350ATV-5
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brake Type:	Disc Brake
Maximum Speed:	>75 km/h
Fuel:	Gas / Diesel
Certification:	EEC
Transmission System:	Chain Drive
Engine Type:	4 Stroke
Structure:	Without Door
Transmission Type:	Manual
Displacement:	350CC

Product Description

2 Wheels Drive, double wish bone, 4 strokes, chain transmission
Parameter of the engine:
Cylinder: Single, on end
Bore stroke: 83mm X 64.5mm
Nominal displacement: 350CC
Compression ratio: 9.2: 1
Max. Power: 13 KW (7000r/min-7500r/min)
Nominal power: 18 KW (7500r/min)
Max. Torque: 22.5 N. M (7500r/min)
Cooling style: Water-cooled
Clutch: Wet friction plate, Manual
Ignition: CDI
Spark plug: DR8EA (NGK)
Lubricating: Pressure splash
Lubricant volume: 3L
Gear shift: 6 gears + reverse gear
Reverse: Inside reverse gear
Transmission ratio: First gear: 2.685 second gear: 1.969
Third gear: 1.504 fourth gear: 1.239
Fifth gear: 1.065 sixth gear: 0.946
Reverse gear: 6.806

Parameter of the CBU ATV:
Dimension (L/W/H): 1760 X 1110 X 1180mm
Wheelbase: 1230mm
Wheel tread: 820mm
Height of seat: 830mm
Ground clearance: 250mm
Climbing obliquity: >= 22 degree
Turning radius: 6000mm
Brake distance: <7m (60km/h)
Startup performance: <15s
Toe in: 35mm
Tyre: Front: AT21*7-10 rear: AT20*10-9
Tyre pressure: 25Kpa
Shock absorber: Hydraulic spring shock
Front shock absorber: Double hydraulic spring shock
Rear shock absorber: Single integral ballonet absorber
Arrester: Front: Double hydraulic disc brake
Rear: Single hydraulic disc brake
Max. Load: 350kg
Fuel tank: 8.8L
Max. Speed: >=80km/h
Starting system: Electric
Stop brake: Mechanical
Model of felloe: Steel ring
Battery: 12V / 8Ah

Packing:
G. W. /N. W.: 250KG / 194KG
Carton size: 184 X 110 X 107CM
Loading quantity: 12PCS/20'GP, 26PCS/40'GP, 39PCS/40'HC
Passenger: 2

Options (not free): Alloy rim, Alloy footrest
