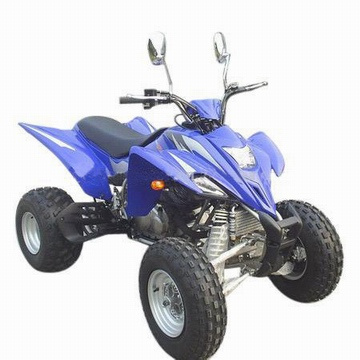

Home Fribest Industry Group Co., Ltd. 350cc EEC Raptor ATV(Quad) Air Cooled (FA350R-E)
Specifications
| Prod Model: | FA350R-E |
|---|
Product Description
Engine type: Single cylinder, 4-stroke, SOHC, air cooledDisplacement: 348 cc
Bore and stroke: 83 x 64. 5 mm
Compression ratio: 9. 2: 1
Lubrication: Wet sump
Carburettor: Mikuni BSR 36
Ignition: Electronic CDI
Starter system: Electric
Fuel tank capacity: 9 Litres
Gearbox: 6 Speed + reverse
Overall length: 1770 mm
Overall width: 1095 mm
Overall height: 1080 mm
Seat height: 820 mm
Wheelbase: 1210 mm
Dry weight: 170 kg
Brake front: Hydraulic double disc
Brake rear: Hydraulic disc
Tyres front: 21 x 7-10
Tyres rear: 20 x 10-9
