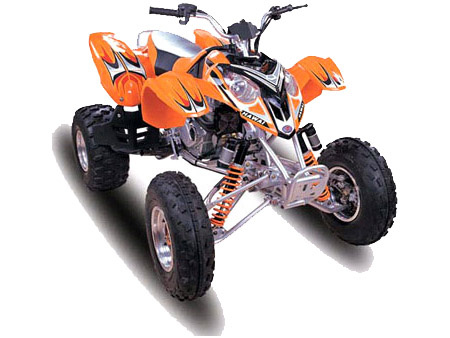

Home Jinhua Senli Vehicles Co., Ltd. 300cc Polaris Style Air-Cooling EPA / DOT ATV
Specifications
| Prod Model: | SL300ATV-3 |
|---|
Product Description
Dimensions (L x W x H): 184 x 120 x 117cmWheel base: 123mm
Engine type: Single cylinder, air-cooling, 4-stroke
Start mode: Electric
Power: 14. 7kW/8, 000rpm
Max. Torque: 20N. M/6, 000rpm
Max. Speed: 85km/h
Min. Ground clearance: 113mm
Dry weight: 190kg
Transmission mode: Chain
1Break type (F/R): Disc / disc
Power source: 12V, 20Ah
Climbing degree: 20 degrees
Fuel tank capacity: 10L
Front hanging: Double arm-swing
Rear hanging: Integral
Tires: A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 11 - 9
Cylinder size: 78 x 61. 2mm
Displacement: 249mL
Transmission: 6 gears with reverse gear, manual clutch
Height of seats: 860mm
Min. Turning radius: 300cm
Parking trig: Mechanical lock
Ignition mode: CDI
Load capacity: 150kg
Engine oil: 1. 3L
Max. Number of riders: 1
Lubrication: Press splash
Gas cylinder number: 1
Outer packing:
Dimensions: 195 x 112 x 88cm
Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 26 units
Qty/40' HQ: 39 units
