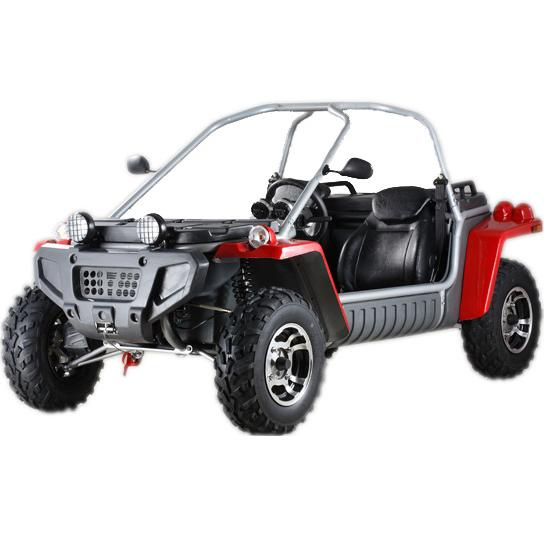

300cc Go Kart with EEC (FPG300E)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | FPG300E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Start-up: | Electric |
| Transmission: | Shaft |
| Displacement: | 400CC |
| Certification: | EEC |
Product Description
ENGINE TYPE: Single cylinder, 4 Stroke, Water Cooled 300CC go kartMAX. POWER(KW/rpm): 14KW/7000rpm
MAX. TORQUE(NM/rpm): 20N. M/5500rpm
MAX. SPEED: 60KM/h
BORE STROKE: 72.5mm X66.8mm
DISPLACEMENT: 276cm
COMPRESSION RATIO: 10.3: 1
CARBURETOR: CVK052
LUBRICATE : Combined force-feed and splash lubrication
AIR FILTER TYPE: Dry Air Filter Net
SPARK PLUG: DR8EA
IGNITIOIN: C. D. I
STARTING: Electric Start
STARTING PROCEDURE: Turn Electric Lock
GEARSHIFT: Manual
TRANSMISSION: Automatic CVT
FINAL DRIVE SYSTEM: 2W/Shaft
BRAKE FRONT: Hydraulic disc brake
BRAKE REAR: Hydraulic disc brake
BRAKE DISTANCE: 7m/30km/h
FRONT SUSPENSION: Double Swing Arm (Mcpherson front suspension)
REAR SUSPENSION: Indepentent rear suspension with double swing arm
SHOCK ABSORBER(F): Double
SHOCK ABSORBER(R): Double
BATTERY: 12V/20A
ENGINE OIL: 1.5L
TRANSMISSION OIL: 0.65L
REAR OIL __
FUEL: 90# unleaded gasoline
FUEL CAPACITY: 20L
TURNING RADIUS: 3800mm
MAX. LOAD(kgs/lbs): 156kg
FRONT TIRE: 25X8-12
REAR TIRE: 25X8-12
WHEEL MATERIAL: Aluminium alloy
OVERALL: 2700X1470X1440mm
CARTONE SIZE (L/M/H): 2520X1500X710mm
PACKAGE40HQ`(SET): 23PCS
WHEELBASE(mm): 2005mm
SEAT HEIGHT(mm): 500mm
GROUND CLEARANCE: 250mm
NET WEIGHT(kgs/lbs): 370kgs
COLOR CODE: "Red, Black, Orange, Blue"
