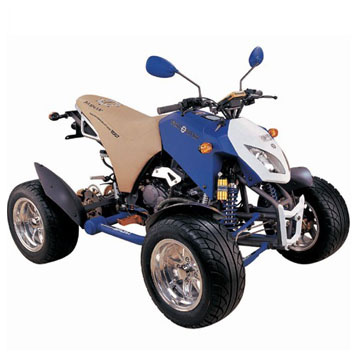

300cc EEC ATV (FA300E-18)

Specifications

Prod Model:	FA300E-18

Product Description

Specifications:
1) Engine type: Single cylinder, oil cooling, four-stroke
2) Power: 13KW/7.000r/min
3) Max. Torque: 20.5N. M/5, 500r/min
4) Min. Ground clearance: 130mm
5) Wheel base: 1, 300mm
6) Fuel tank capacity: 8L
7) Transmission mode: Chain
8) Starting mode: Electric
9) Tires:
A) Front wheels: 215/50-12
B) Rear wheels: 215/50-12
10) Max. Speed: 70km/h
11) Break type (F/R): F/R interactive disc brake
12) Power source: 12V, 14Ah
13) Height of seats: 860mm
14) Dry weight: 190kg
15) Load capacity: 170kg
16) Climbing degree: 20
17) Front hanging: Double arm-swing, integral ballonet absorber
18) Rear hanging: Inner single ballonet absorber
19) Cylinder size: 70× 65mm
20) Displacement: 279.2ml
21) Transmission: 4 gears with reverse, manual clutch
22) Min. Turning radius: 2, 800mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Engine oil: 1L
26) Max. Number of riders: 2
27) Lubrication: Press splash
28) Compression proportion: 10: 1
29) Gas cylinder number: 1
