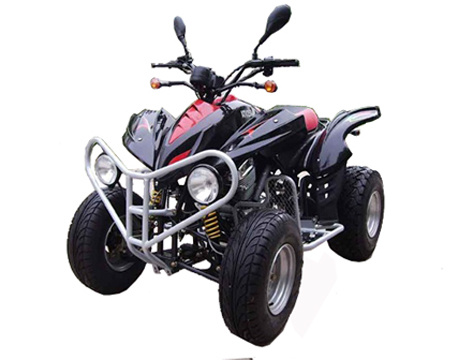

300cc EEC ATV (300ST-3)

Specifications

Prod Model:	300ST-3

Product Description

Dimension L*W*H (mm): 1900x1050x1150
Dry Weight (kg): 220
Grad Ability: ≥30
Wheelbase (mm): 1100
Track, Front/Rear (mm): 830 / 780
Ground Clearance (mm): 150
Brakes, Front/Rear Disk/Disk
Tires, Front / Rear: 22*8-7-10/22*10-10
Max Speed (km/h): ≥60
Engine Type: 292.4cc, 4-stroke, Single Cylinder
Bore*Stroke (mm): 78x61.2
Ignition: CDI
Rated Power (kw/rpm): 14.7/7500
Max Torque (N. M/rpm): 20.0/6000
Compression Ratio: 8.9:1
Cooling System: Oil Cooling
Transmission; Five speed with Reverse
Final Drive: Shaft
Start: Electrical
Fuel Tank Capacity: 7.5L
