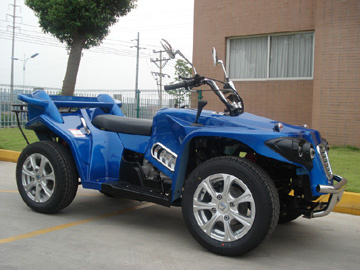

300cc CVT (EEC V-CAR)

Specifications

Prod Model:	EEC V-CAR

Product Description

Engine: 300cc CVT, water-cooled with reverse gear.
1) Overall Dimension: L*W*H2530mm*1100mm*1230mm
2) Ground clearance: 130mm
3) Seat Height: 630mm w/2 seats
4) Max. Speed: ≥80km/h
5) Max. Load: >150kgs
6) Climbing Ability: ≥15 degree
7) Specification of Front wheel: 175 / 60R13 On road
8) Specification of Rear wheel: 175 / 60R13 On road
9) Brake system: front/rear Hydraulic Disk Brake system
10) Engine: Single cylinder, CVT
11) Efficient Capacity: 278ml
12) Rated Power and Rotate Speed: 14.8 / (6500 ± 5%)(KW/r/min)
13) Max Torque and Rotate Speed: 23.0 / (6000 ± 5%)(N.m/r/min)
14) Compressing Ratio: 10.0:1
15) Gearshift Mode: CVT
16) Transmission: Shaft Transmission
17) Drive Method: Rear wheel drive
18) Ignition: CDI
19) Starting System: Electric Start
18) Battery: 12V*9AH
19) Cooling System: Water Cooling
20) Fuel & tank capacity: ≥9.5L ≥93# gasoline

Packing:
Steel frame and carton
N.W: 296Kgs
G.W: 360Kgs
Carton dimensions:2300mm*1050mm*860mm
Container:10pcs/20"FCL, 33pcs/40"HQ
