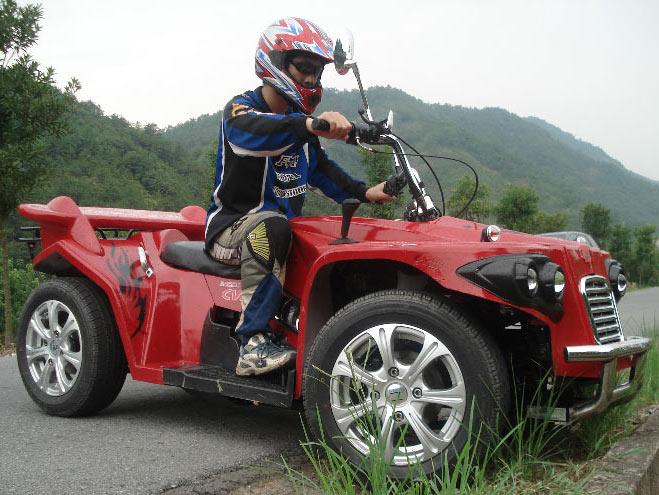

300CC ATV (KWS6-Q300)

Specifications

Prod Model:	KWS6-Q300

Product Description

Certificate: 300cc atv, eec approval
1) Overall Dimension L*W*H: 2530mm*1100mm*1230mm
2) Ground clearance: 130mm
3) Seat Height: 630mm w/2 seats
4) Max. Speed: ≥ 80km/h
5) Max. Load: >150kg
6) Climbing Ability: ≥15
7) Specification of Front wheel: 175 / 60R13 On road
8) Specification of Rear wheel: 175 / 60R13 On road
9) Brake system: Front / rear Hydraulic Disk Brake system
10) Engine: Single cylinder, CVT
11) Efficient Capacity: 278ml
12) Rated Power and Rotate Speed: 14.8kW/r/min / (6500± 5%)
13) Max. Torque and Rotate Speed: 23.0 / (6000± 5%)
14) Compressing Ratio: 10.0: 1
15) Gearshift Mode: CVT
16) Transmission: Shaft Transmission with differential device
17) Drive Method: Rear wheel drive
18) Ignition: CDI
19) Starting System: Electric Start
18) Battery: 12V*9AH
19) Cooling System: Water Cooling
20) Fuel & tank capacity: ≥9.5L ≥93# gasoline

Packing:
Steel frame and carton
Carton dimensions:
2300mm*1050mm*860mm
Container:
10pcs/20' FCL, 33pcs/40' HQ
N. W.: 296Kgs
G. W.: 360Kgs
