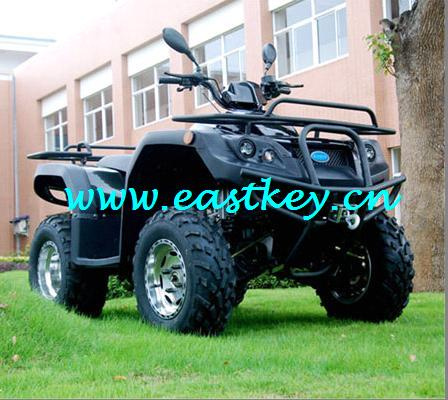

300cc ATV CVT

Specifications

Product Description

Certificate: EEC quad, EEC approval

1) Engine type: 300cc, water-cooled, single cylinder, 4 strokes, with H/L, N, R gear
2) Displacement: 278ml
3) Max. Power: 16.0Kw / 6, 500 (r/min)
4) Max. Torque: 23.0N. M / 5, 500 (r/min)
5) Compression rate: 10.0: 1
6) Drive system: Shaft, 4X4 front differential device
7) Clutch: Automatic clutch
8) Brake: Front and rear hydraulic disc brake
9) Tire: 25X8-12(F), 25X10-12(R)

10) Max. Speed: 75km/h
11) Battery: 12V x 14Ah
12) Seat Height: 850mm
13) Wheel base: 1, 280mm
14) Ground clearance: 180mm
15) Suspension: Front and rear hydraulic suspension
16) Ignition type: TCI
17) Start system: Electric start
18) Dimension: 2, 180mm X 1, 190mm X 1, 225mm
19) Max. Load: 200kgs
20) Fuel & tank capacity: ≥93# gasoline& 12L

400cc quad, 300cc quad
Packing: Steel frame and carton
Carton dimensions: 2, 310 X 1, 210 X 1, 130mm
Container: 8PCS/20"FCL, 18PCS/40"FCL, 22PCS/40"HQ
N. W.: 315Kgs
G. W.: 355Kgs
