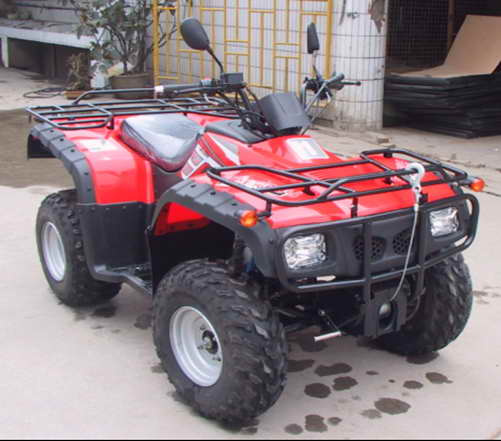

300CC ATV(300ST)

Specifications

Prod Model:	300ST

Product Description

Engine Model: 178FMN
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Transmission System: Chain Drive
Bore * Stroke: 78*61.2
Ignition: C.D.I
Max.Power: 16.1/8000Kw/r/min
Max.Torque: 20/7000N.M/r/min
Lubrication: Pressure/ Splash
Transmission: 4 Forward Gear and 1 Reverse Gear
Compression Ratio: 8.9: 1
Starting Type: Electric
Oil Consumption: ≤365(g/Kw.H)
Transmission System: Manual

Brake Style(front/rear): Disc/Disc
Front Tyre: 23*7-10
Rear Tyre: 22*10-10
Wheel Base: 1160mm
Front Shock Absorber: Independent Hanging
Rear Shock Absorber: Middle Absorber
Front Suspension: Single A-arm
Rear Suspension: Middle Absorber
Displacement: 292.6ml
Oil Tank Capacity: 7.2L
Engine Oil Capacity: 1.3L
Gear Oil Capacity: 0.27L
Climbing Ability: ≥28
Max.Load: 165Kg
Max.Speed: 80Km/h
Max.Noice: 80(dB)
Battery: 12V-18AH
Packing Type: Iron Frame + Plastic Bag +Carton
