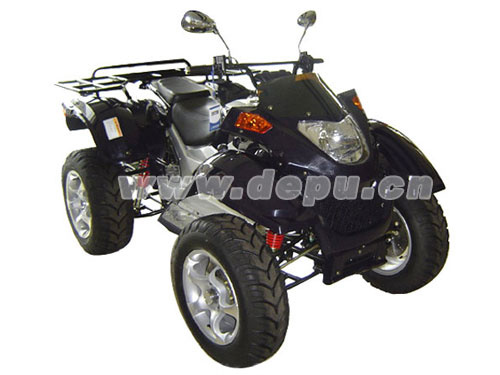

Home Depu Industry & Trade Co., Ltd. 260cc, Water Cooling, 4 Stroke, 1 Cylinder ATV (DP-260(EEC)-C)
260cc, Water Cooling, 4 Stroke, 1 Cylinder ATV (DP-260(EEC)-C)
| Price: | Negotiable |
|---|---|
| Trade Terms: | Sea |
| Min Order: | 1 |
Specifications
| Prod Model: | DP-260(EEC)-C |
|---|
Product Description
260cc, water cooling, 4 stroke, 1 cylinderDP-260(EEC)-C
Engine: 260cc, water cooling, 4 stroke, 1 cylinder
Bore x Stroke: 70x66. 8mm
Compression Ratio: 9: 1
Max Power: 12kw/7500rpm
Max Torque: 2. 0 N. M/5500 rpm
Max speed: 80kph
Ignition: DC-C. D. I.
Starting: Electric
Transmission: Automatic CVT with reverse
Drive train: Shaft
Suspension(front): Independent dual A-arm
Suspension(rear): Independent A-arm/ Double Oil Damped Shock
Brake(front/rear): Hydraulic disc, right foot
Tire(front/rear): AT 24x8. 0-14 / AT 24x10-14
Wheel track (front/rear): 920/900mm
Wheelbase: 1400mm
Seat Height: 815mm
Ground clearance: 200mm
Min Turning Radius: 4600mm
Max Loading: 200kgs
Fuel tank Capacity: 7L
Oil Consumption: 3. 5L/100km
LxWxH: 2135x1210x1130mm
Carton size: 2280x1270x870mm
N. W. /G. W.: 260/300KGS
Conveyance: 27pcs/40HQ
