Specifications
Prod Model: |
GBTKD260-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
260CC Go Kart (Gbtkd260-2): |
260CC Go Kart with EEC, CVT System |
Transmission: |
Automatic |
Start-up: |
Electric |
Certification: |
EEC |
Displacement: |
250CC |
Maximum Speed: |
60-90 km/h |
Product Description

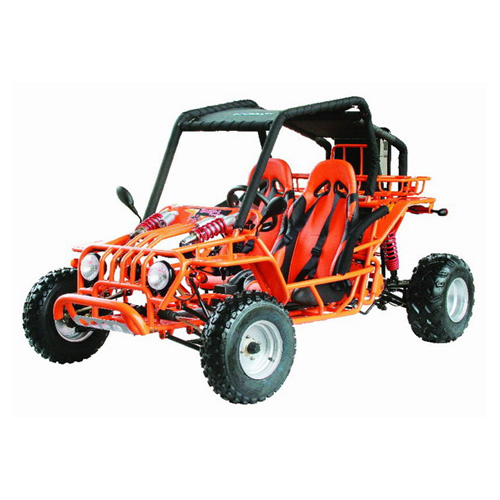

260CC Go Kart (GBTKD260-2)
Available Color: Red, orange, yellow, dark blue, light blue, green, black, silver
Size: 2690mm x 1500mm x 1465mm
Wheelbase: 1955mm
Front track: 1270mm
Rear track: 1250mm
Ground clearance: 220mm
Engine type: Water-cooled, 4-stroke
Engine capacity: 257CC
Bore x Stroke: 70mm x 66.8mm
Corrected compression ratio: 9: 1
Rated output power: 11.5kw/7500rpm
Rated torque: 20Nm/5000rpm
Starting: Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Automatic (C. V. T system)
Maximum load: Double seats/200kg
Fuel tank: 16L
Climbing: 20° - 25°
Top speed: 70km/h
Front/Rear brake: Hydraulic disc, right foot control
Front/Rear tire: AT21X7-10 / AT22X10-10
Final drive: Shaft drive
Restraint System: Dual 4-point Harness
Carton size: 2315mm x 1305mm x 860mm
Net weight: 372kg Gross weight: 431kg
Quantity: 27PCS/40HQ; 18PCS/40GP; 8PCS/20GP
