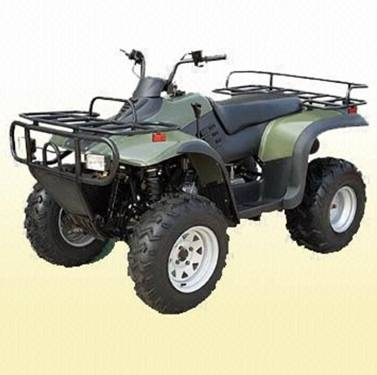

260CC ATV with EPA (TS-ATV260-A)

Specifications

Prod Model:	TS-ATV260-A

Product Description

Engine Type: 1-Cylinder, 4-stroke, Liquid Cooled

Max power (Kw/min): 12. 5/7500

Max torque (Nm/min): 17. 6/5500

Displacement: 244CC

Bore*stroke (mm*mm): 72*66. 8mm

Compression ratio: 10: 1

Ignition: DC-C. D. I Starting: Electric

Lubrication: Pressure & Spray

Fuel capacity (liter/gallons): 14/3. 7

TRANS: CVT Auto(front/rear) range with reverse

Final drive: Shaft 2WD

Clutch type: Auto

Front suspension: Dual A-arm

Rear suspension: Swing arm

Front brake: Dual hydraulic disc

Rear brake: Hydraulic disc

Parking brake: Rear wheel

Front/Rear tire: AT 24*8-12/ AT 24*11-10

Climbing degree: 30 Seat height (mm): 865

L*W*H(mm/in)=2100*1170*1170/82. 7*46. 1*46. 1

Seat height (mm/in): 860/33. 9

Ground clearance (mm/in): 190/7. 5

Dry weight (kg/lbs): 200/440

Qty/20'GP: 8 Qty/40'GP: 20 Qty/40'HP: 29
