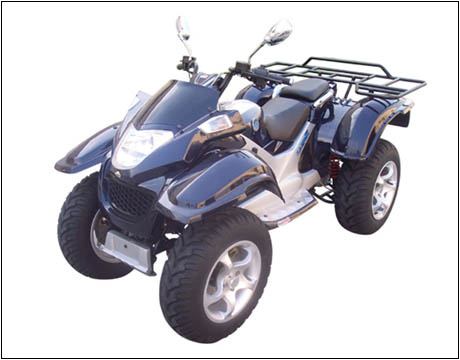

260CC ATV Quads

Specifications

Prod Model:	XS-ATV023

Product Description

XS-ATV023

Body size(mm): 2150 x 1212 xx1190
Carton size(mm): 2200 x1250 x860
Container: 27pcs/40HQ
Dry/ Gross Weight: 260/310 kg
Axle span(mm): 1450
Wheel span(mm): Fr:810 Re:850
Max speed(km/h): 80
Fuel tank volume:14L
Gasoline brand: 90#leadless gasoline
Brake device: Fr: Disc brake Re: Disc brake
Tire size: Fr:24 x 8.00-14 Re:24 x 10-14
Engine type: Single crlinder,4 stroke, water cooling
Transmission System: shaft drive with reverse, CVT system.(differential gear optional)
Displacement: 257CC
Compression ratio: 9:1
Igniting way: C.D.I
Max torque: 20.0N.m/5500 (r/min)
Starting way: Electric start
Rated power: 12kw/7500r/min
