Dashboard:
Common Meter
Controller:
500W Brushless Controller
Max. Load:
150kg
Climbing Angle:
25 Degrees
Charging Time:
8~10 Hours
Gross Weight:
95kgs
Net Weight:
85kgs
Brake:
Drum Brake
Front Fork:
Hydraulic Pressure
Throttle:
Twist Intelligent Speed Control
Product Description

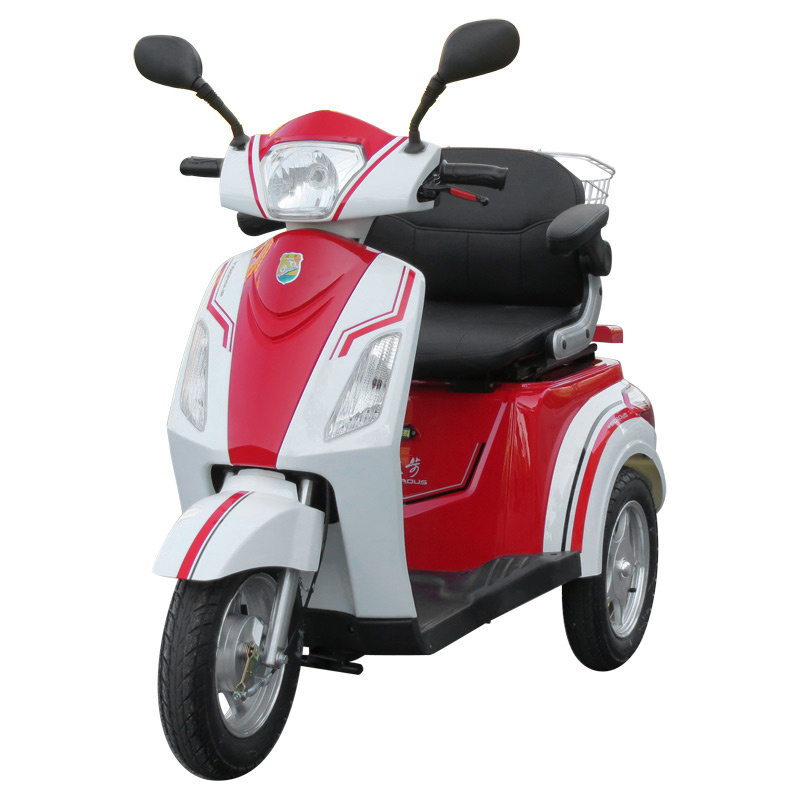

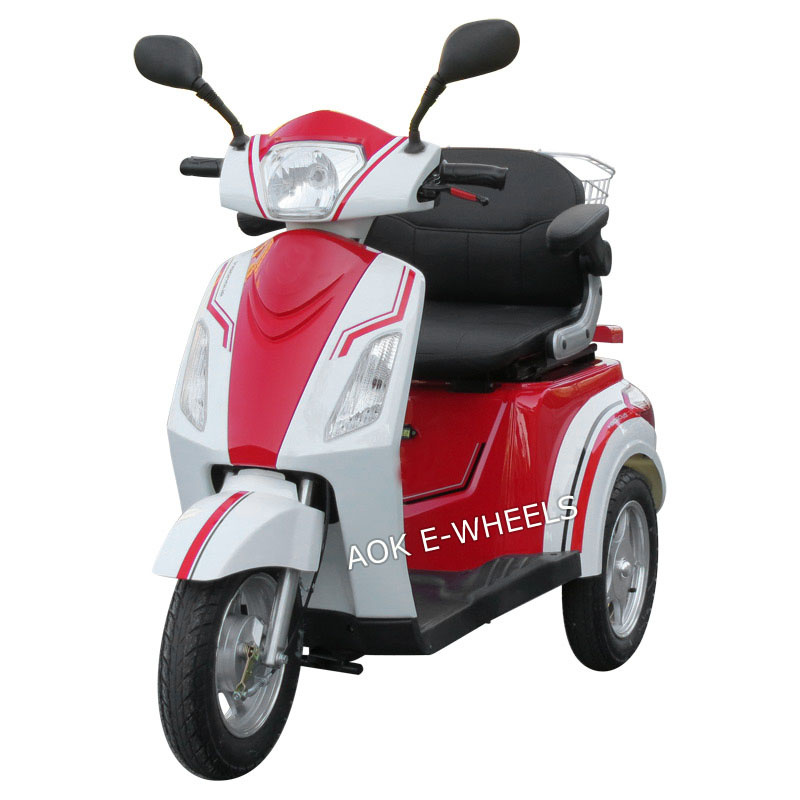

250W-800W Handicapped Mobility Scooter for Old People with Basket
Motor: Brushless hub motor 500W Battery: A) 48V / 20Ah b) Sealed lead-acid battery Dashboard:common meter Controller: 500W Brushless controller Tyres :300-10 tubless Max. Load: 150kg Top speed: 25km/h Range:70km(distance by riders weight,terrain,road sufurface etc.) Climbing angle: 25 degrees Gross weight: 95kgs Net weight: 85kgs With 3 kinds of different max speed (1speed :9km/h , 2 speed : 15km/h ,3speed :25km/h) With reverse gear
Electronic specification
Motor
Brushless hub motor 500W
Battery
48V20Ah sealed lead-acid battery
Dashboard
common meter
Controller
500W Brushless controller
Charger
110V60HZ/220V50HZ
Charging time
8~10 hours
Lamp
Common bulb
Performance & Main components
Max.speed
25km/h
Range
70km(distance by riders weight,terrain,road sufurface etc.)
Max load
150KGS
Tyres
300-10 tubless
Brake
Drum brake
Climbing angle
<= 25°
Throttle
Twist intelligent speed control
Front fork
Hydraulic pressure
With reverse gear
With 3 different kinds of max speed (1speed:9km/h,2speed:15km/h,3speed:25km/h)
Packaging
Unit packaging
Each in a Carton Box
N.W/G.W
95kgs/110kgs(48V20AH)
Qty / Export carton
1 pc /ctn
Export carton dimension
140X77X73CM
1x20'footer FCL quantity
36 pcs
1x40'footer FCL quantity
72pcs
1X40'HQ
72 pcs
Product Show
Business Terms
1. The price above are based on FOB Ningbo(Zhejiang Province,China). 2:Lead time:15 working days for samples, 20~25 days for bulk. 3.The quotation is valid within 15 days, we reserve the right to modify the prices if needed. 4.The prices above are for your reference only, it is subject to our final confirmation.
Payment Terms
1.100% payment in advance to start production,when you buy the sample. 2.30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading. 3.L/C at sight(when the amount above 30000 dollars) 4.Paypal and Western Union are also accepted.
