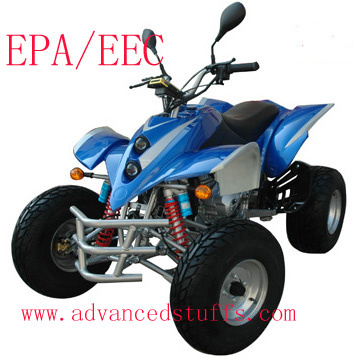

250cc Water Cooling ATV - EEC02

Specifications

Product Description

Engine: 250cc, 4-stroke, single cylinder, water-cooled
Engine displacement (ml): 229.2
Bore x stroke (mm): 67 x 65
Engine compression ratio: 10.0: 1
Max. power (kW/rpm): 11.5/6500
Max. torque (rpm): 17.5/5500
Start mode: electric start
Shift speed type: four speed gear, one reverse gear
Clutch mode: manual clutch
Tank: 5L, ≥ 90 gasoline
Top speed (km/h): 90
Load capacity: 110KGS
Transmission mode: chain driven
Tread between front wheels: 975mm
Tread between rear wheels: 835mm
Distance between axles: 1255mm
Min distance from the ground: 140mm
Tires (front/rear): AT23 x 7-10/AT22 x 10-10
Brakes (front/rear): disc/disc
Min. turning radius (mm): 3200
Seat height (mm): 850
Climbing degrees: 35 degree
N. W. /G. W.: 188kgs/208kgs
Product dimensions (mm): 1930 x 1160 x 1410
Carton dimensions(mm): 1780 x 1060 x 840
Qty: 12PCS/20", 24PCS/40", 38PCS/40HQ
Available colors: red, yellow, blue, green, camouflage, black, burgundy
Certificate: EEC, EPA
