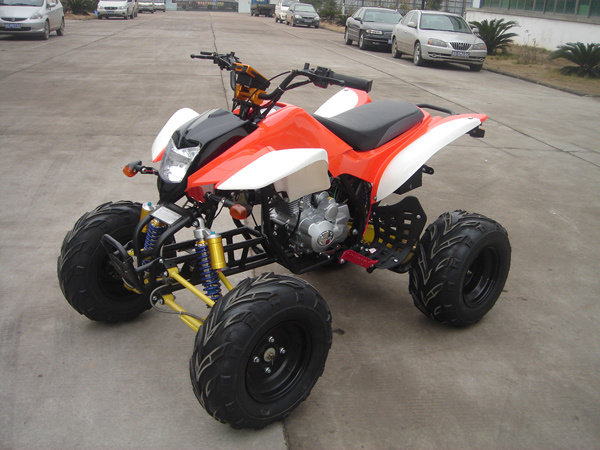

250CC WATER-COOLED / AIR-COOLED ATV(BK-250C)

Specifications

Prod Model:	BK-250C
Certification:	CE
Transmission System:	Chain Drive
Engine Type:	4 Stroke
Structure:	Multi-door
Transmission Type:	Manual
Displacement:	250CC

Product Description

HOT 250CC ATV (BK-250C)

Specification:
Engine: 250CC, water cooled, 4 speed with reverse, four stroke park ignition
BorexStroke: 63.5X62.2mm
Compression Ratio: 9.2: 1
Clutch: Manual, wet Multi-plate
Max Torque: 13.5Nm/(6500+-500)r/min
Max Power: 10Kw/(7500+-500)r/min
Gear Reduction Ratio: 15/40
Suspension /Front: Independent dougle swing arms, air pressure absorber
Supension/rear: Swing arm, single absorber
Tire/front: 21x7-10
Tire/rear: 20x10-10
Brake/front: Double disc brake
Brake/rear: Single hydraulic disc brake
Dimension: LXWXH 176X112X137 CM
Seat Height: 81cm
Ground Clearance: 15 cm
Wheelbase: 110cm
Fuel Capacity: 6L
