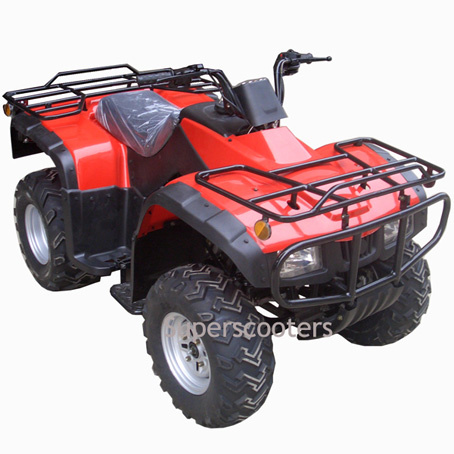

250cc Utility ATV (SA250-A)

Specifications

Product Description

Features:
1) Engine: 4-stroke single cylinder with air-cooled
2) Displacement (ml): 233.9
3) Compression ratio: 9.2:1
4) Ignition model: CDI
5) Clutch mode: automatic clutch
6) Transmission: shaft drive
7) Lubrication: press/splash
8) Shift speed type: five, with reverse gear
9) Overall dimensions (L x W x H): 1880 x 1050 x 1080mm
10) Kerb mass: 213kg
11) Top speed(km/h): 70
12) Tire size (front and rear): 21 x 8-10/22 x 10-10
13) Max power: 13kW/8500r/min
14) Max torque: 15N.m/7000r/min
15) Idle speed: 1400r/min
16) Start model: electric

Outer packing:
Carton dimensions: 1900 x 1080 x 990mm
N.W.: 213kg
G.W.: 255kg

Conveyance:
Qty/20' FCL: 12pcs
Qty/40' FCL: 24pcs
Qty/40' HQ: 36pcs
