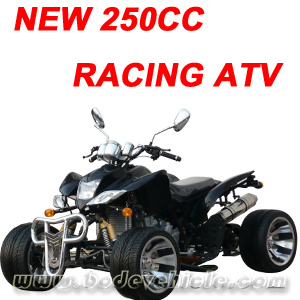

250CC Racing ATV (MC-365)

Specifications

Prod Model:	MC-365

Product Description

We have 110CC racing ATV, 150CC racing ATV, 200CC racing ATV, 250CC racing ATV
Type: Single cylinder, water-cooling, 4-stroke
Transmission: 4 gears with one reverse gear, manual Clutch
Ignition mode: CDI
Compression propor: 10.5: 1
Power: 9.6KW/7, 500rpm
Max. Torque: 12.7N. M/6, 000rpm
Displacement: 243ml
Start mode: Electric
Transmission mode: Chain
Min. Ground clearance: 100mm
Max. Speed: >70km/h
Power source: 12V, 9AH
Fuel tank capacity: 4L
Chassis
Front wheels: 235/30-R12
Rear wheels: 250/40-R10
Break type(F/R): Disc/disc
Front hanging: Double arm-swing
Rear hanging: Integral
Dimensions
Product dimensions: 2020x1330x960mm
Carton dimensions: 1680x960x800mm
Wheelbase: 1380mm
Height of seats: 680mm
Dry weight: 167kg
Load capacity: 105KG
Climbing degree: >20
Other
Conveyance: Qty/20' GP: 15
Qty/40' GP: 36
Qty/40' HQ: 36
Foot brake stop the 4 wheels.
ATV and go kart HS code: 8703101100
