Specifications
Prod Model: |
GT250L-RE2 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Manual |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
250CC |
Structure: |
Two Side Doors |
Brake Type: |
Disc Brake |
Maximum Speed: |
80-120km/H |
Product Description

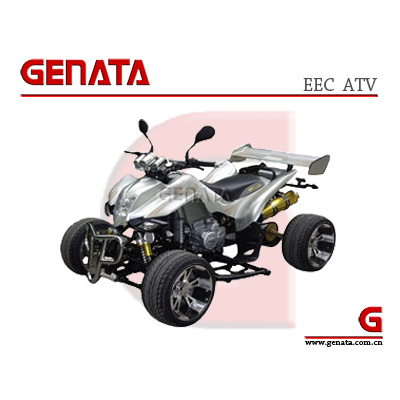

ATV / EEC QUAD ATV GT250L-RE2 (2009 New model)with 4 Brake disk and Rear axle differential which is unique in China.
EEC approval number: E4*2002/24*2026*00 (For 2 persons)
ENGINE |
|
Engine Type: |
250CC, Single-cylinder, 4-stroke, water-cooling |
Bore X Stroke (mm): |
67× 65 |
Compression Ratio: |
10.5: 1 |
Max. Power (kw/r/min): |
12.5/6500 |
Max. Torque (N. M/r/min): |
18.5/5500 |
Idle Speed (r/min): |
1500 |
Max. Speed (Km/h): |
80-120 |
Lubrication: |
Press and splash |
Ignition: |
CDI |
Starting System: |
Electric recoil backup |
Clutch method: |
Manual |
Transmission System: |
Speed adjustment 4 speed with reverse |
CHASSIS |
|
Final Drive: |
Chain drive |
Parking Brake: |
Mechanical lock |
Front Suspension: |
Double wishbone suspension |
Rear Suspension: |
Mono shock swing-arm |
Front/Rear Brake: |
Disc/Disc |
Front Tire: |
235/30-12 (Alloy rims) |
Rear Tire: |
235/30-12 (Alloy rims) |
Battery: |
12V/14AH |
DIMENSIONS |
|
L x W x H (mm): |
1900 x 1115 x 886 |
Seat Height (mm): |
705 |
Front/Rear Track (mm): |
810/760 |
Turning Radius (mm): |
3000 |
Ground Clearance (mm): |
110 |
Max. Load Weight (kg): |
160 |
Rider Capacity: |
2 |
Dry. Weight (kg): |
175 |
Engine Oil (L): |
0.9 |
Fuel Tank Capacity (L): |
7 |
OTHERS |
|
Packing Size (mm): |
1680 x 1100 x 760 |
Packing Weight (kg): |
220 |
Container Loading: |
20'GP: 18PCS 40'HQ: 42PCS |
Colors Available: |
Red, Blue, Black, Silver, White, Green, Orange, Grey |
