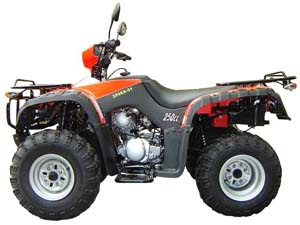

250CC EEC ATV (TS250E-A1)

Specifications

Prod Model:	TS250E-A1

Product Description

Specifications
Engine Type: 4 stroke, air-cooled, 5-speed semi-automatic; Fully auto
Cylinder Arrangement Vetical Single
Cylinder Dia X work stroke: 71x58mm
Final Drive: Shaft drive
Bore x Stroke(mm): 15N. M(6000r/min)
Piston Displacement(cc): 229.6ml
Compression Ratio: 8.7: 1
Maximum Power(kw/r/min): 10.5/6000-7050
Max Torque(N. M/r/min): 16/5500-6500
Starter Sytem: Electric or hand
Lubricaiton: Pressure
Trasmission: 5-speed semi-automatic with reverse
Overall LxWxH(mm): 2270x1610x1533
Packing Dimension LxWxH(mm): 1940x1050x1160
Wheel Base(mm): 1160
Seat Height(mm): 810
Ground Clearance(mm) 2: 20
Parking Brake: Mechanical lock
Brake(Front/Rear) disc/drum,: Foot control or left hand control
Tire, Front: AT22x7-10/20Kpa
Tire, Rear: AT22x10-10/25Kpa
Ignition Type: CDI
Fuel Tank Capacity (L): 12
Front Suspension: Leading arm
Rear Suspension: Swing arm
Max Speed(km/h): 85km/h
Mini Turing Radium(mm): 2900
Max. Load Capacity(kg): 145
Battery Specifiction: 12V12Ah
NW(kg): 220
GW(kg): 250
Quantity of Loading: 12pcs 20'ft; 24pcs 40'ft; 35pcs 40'hq
