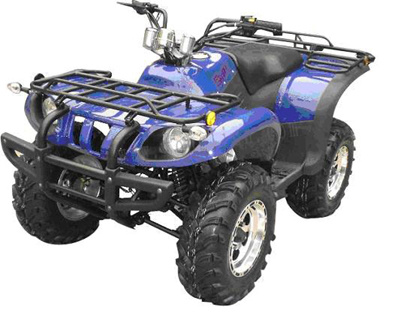

250cc ATV with EEC ( DF250ATV-G)

Specifications

Prod Model:	DF250ATV-G

Product Description

Technical specification of DF250ATV-G ( With EEC )
1) Engine type: Two Cylinder, 4-stroke, water-cooled, 4 forward gears with reverse
2) Displacement: 252cc
3) Max Torque: 18N. M/6000/rpm (Europe standard: 16.5N. M/7500r/min)
4) Max Power: 15.5kw/8500rpm (Europe standard: 13.5kw/9000r/min)
5) Compression ration: 10.5: 1
6) Ignition system: CDI
7) Oil capacity: 9L
8) Economical oil exhaust(L/100km): 3.5
9) Max speed: 80km/h (Europe standard: 65km/h )
10) Starter system: Electric
11) Transmission: chain drive
12) Brake Type: disc brake/disc brake
13) Wheelbase: 1330mm
14) Ground clearance: 210mm
15) Tires (front / rear): 25 x 8-12 / 25 x 10-12
16) N. W.: 254KGS
G. W.: 304KGS
17) Product dimension: 2100*1155*1220
18)The Canton dimension: 2200*1190*840
19)QTY/20FT: 10 units
