Specifications
Prod Model: |
ZC-ATV-06A(250CC) |
Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Western Europe |
Tyre: |
23*7-10,22*10-10 |
Final Drive: |
Chain Drive |
Engine Type: |
4-Stroke |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Condition: |
New |
Type: |
ATV |
Displacement: |
250cc |
Engine Size: |
250cc |
Braking Mode: |
Front Drum Brake,Rear Hydraulic Disc Brake |
Product Description

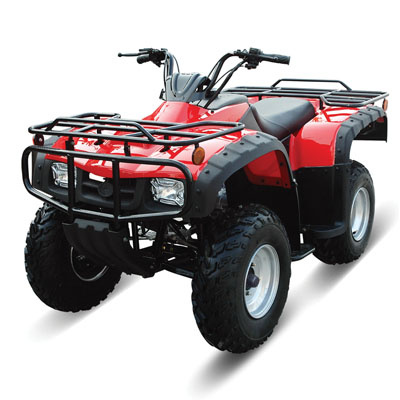

ZC-ATV-06A
Bore × Stroke: 53× 53mm
Ignition: C. D. I.
Lubrication: Pressure/ splash
Starting type: Electric
Max speed: 70km/h
Max noice: 80dB
Dimension: 188× 105× 110 (L× W× H cm)
Wheel base: 1180mm
Brake style: F. Drum / R. Disc
Absorber style: F. Independent hanging
Art No: | ZC-ATV-06A |
Engine type: | 4 stroke, 1-cylinder,air-cooled |
Engine brand: | Xinyuan(Chongqing) |
final drive: | Chain drive |
transmission type: | manual control, hand clutch ,foot control,4-speed(R-0-1-2-3-4) |
Displacement: | 250CC |
Fuel: | Gas |
starting: | Electric |
Max Speed: | 70km/h |
Max Load: | 200kgs |
Front/rear Tire | 23*7-10,22*10-10 |
Brake: | front drum brake,rear hydraulic disc brake |
Max Power: | 13kw/8000±150r/min |
max torque: | 14.5N.m/5500±150r/min |
Ignition: | C.D.I |
lubrication: | pressure/ splash |
Battery : | 9AH/12V |
Fuel Tank capacity: | 10L |
Net/Gross weight : | 215kgs/245kgs |
product size: | 188*418*110cm |
Carton size: | 198*108*85cm |
container: | 12pcs/20GP,36pcs/40HQ |
MOQ: | 5pcs |
Port: | Ningbo |
cetification: | CE |
Color: | Blue,black,red,yellow..optional |
Packaging Details: | iron cage with carton outside |
Delivery Detail: | 20-40days |
