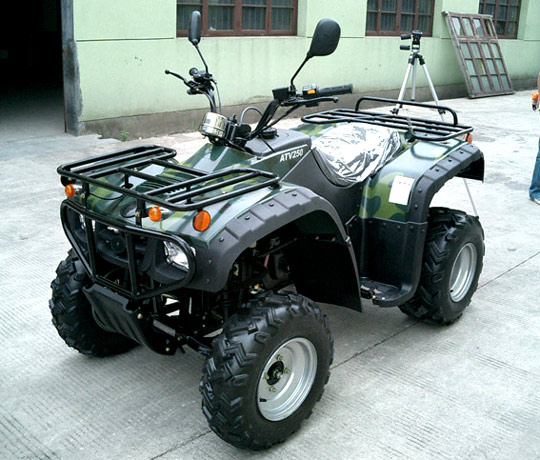

Home China Huina Vehicle Co., Ltd. 250CC Air Cooled ATV (HN-ATV012)
Specifications
| Prod Model: | HN-ATV012 |
|---|
Product Description
Product DescriptionEngine type: 248cc, air-cooled, 4-stroke, single cylinder
Compression ratio: 9. 2: 1
Max torque: 17. 5Nm/5500rpm
Max power: 11Kw/7500rpm
Battery: 12V 9A
Starting system: Electric starter
Transmission: Semi: Manual clutch, 5 speed with reverse Chain/shaft drive
Brake(front/rear): Drum/drum
Front tyre: 23 x 7-10
Rear tyre: 22 x 10-10
Ignition type: C. D. I
Dimension: 1940*1040*1100 mm
Wheel base: 1200mm
Seat height: 90mm
Ground clearance: 140mm
Max. Load capacity: 165kg
G. W. /N. W.: 230kg/210kg
Front suspension: Double A-arm, air shock absorber
Rear suspension: Mono shock swing arm
Packing: 194*106*87cm
Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 24 units
Qty/40' HQ: 36 units
Colour: Red, blue, green, black, yellow, green camouflage, blue camouflage, Maple leaf camouflage, USA stars&stripes
