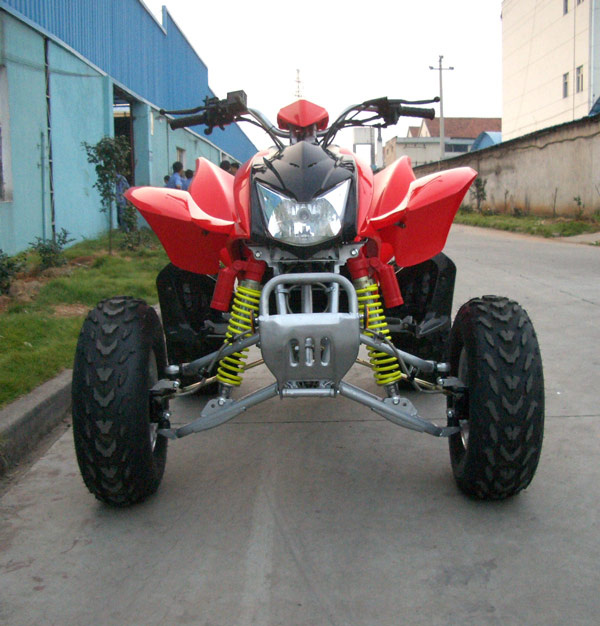

Home China Huina Vehicle Co., Ltd. 250cc, 300cc Air Cooled TRX450 ATV (HN-ATV09-1)
250cc, 300cc Air Cooled TRX450 ATV (HN-ATV09-1)
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1 /Piece |
Specifications
| Prod Model: | HN-ATV09-1 |
|---|
Product Description
Product descriptionAtvs&quad: 250cc air cooled/300cc air cooled
Features:
1) Engine: Single cylinder, 4-stroke, reverse inside
2) Max. Power: 12kW / 6, 500 - 500rpm
3) Max. Torque: 18.5N. M / 5, 500 - 500rpm
4) Cylinder radius x space: 78.5mmx68mm
5) Displacement: 319ml
6) Compress rate: 9.2: 1
7) Tank capacity: 1.4L
8) Ignition: C. D. I
9) Gear shaft: 4 gears/1 reverse, neutral
10) Clutch: Manual wet multi-piece
11) Reverse: Reverse inside
12) Starting: Electric starting
13) Cool: Air cooled
14) Braking system: Front / rear hydraulic brake
15) Transmission: Chain, rear driving
16) Front wheel type: AT23 x 7-10
17) Rear wheel type: AT22 x 10-10
18) Seat height: 830mm
19) Min. Turning radius: 2, 700mm
20) Min. Ground clearance: 175mm
21) Oil case capacity: 9.8L
22) Locking system: Mechanical lock
23) Battery: 12V, 14Ah
24) Max. Load: 150kg
25) Seat number: 1 person
26) Fuel consumption: 5L/100km
27) Axle base: 1, 260mm
28) Front wheelbase: 870mm
29) Rear wheelbase: 930mm
30) Max. Velocity: 90km/h
31) Max. Climbing ability: 60'
32) Dimensions: 1, 880 x 1, 140 x 1, 120mm
33) N. W.: 180kg
Container/units: 40hq/40pcs; 40ft/28pcs; 20ft/14pcs
