Specifications
Prod Model: |
GM250GY-13 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Type: |
4-Stroke |
Displacement: |
126-250CC |
Certification: |
CE |
Fuel: |
Gas / Diesel |
Condition: |
New |
Type: |
Sport Motorcycle |
Product Description

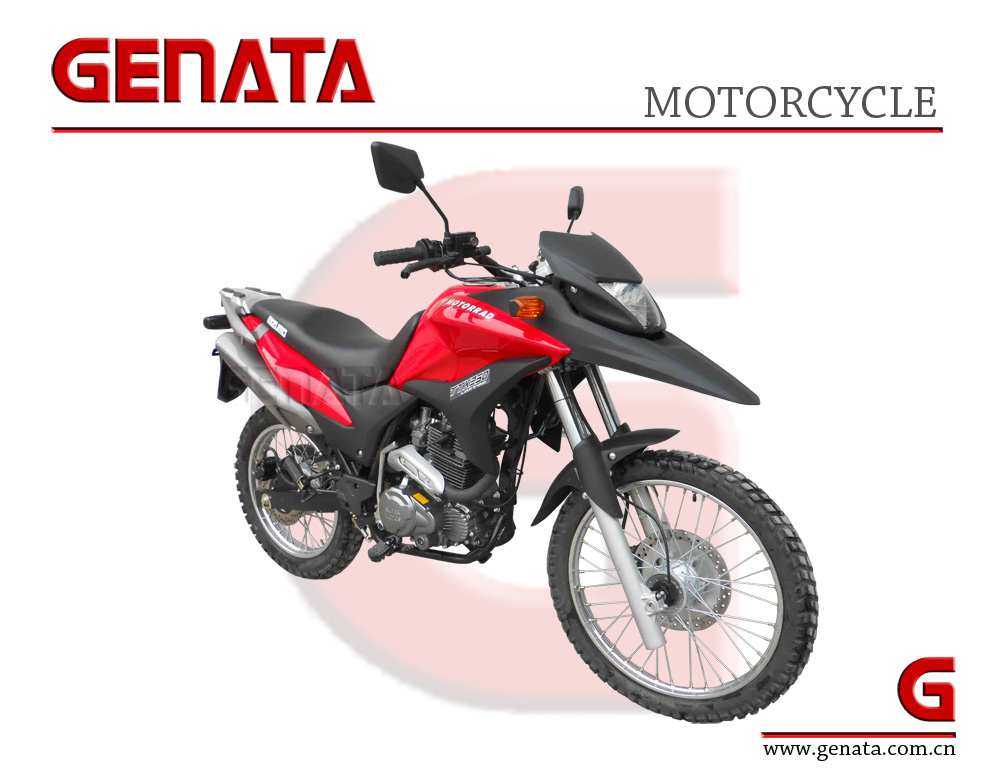

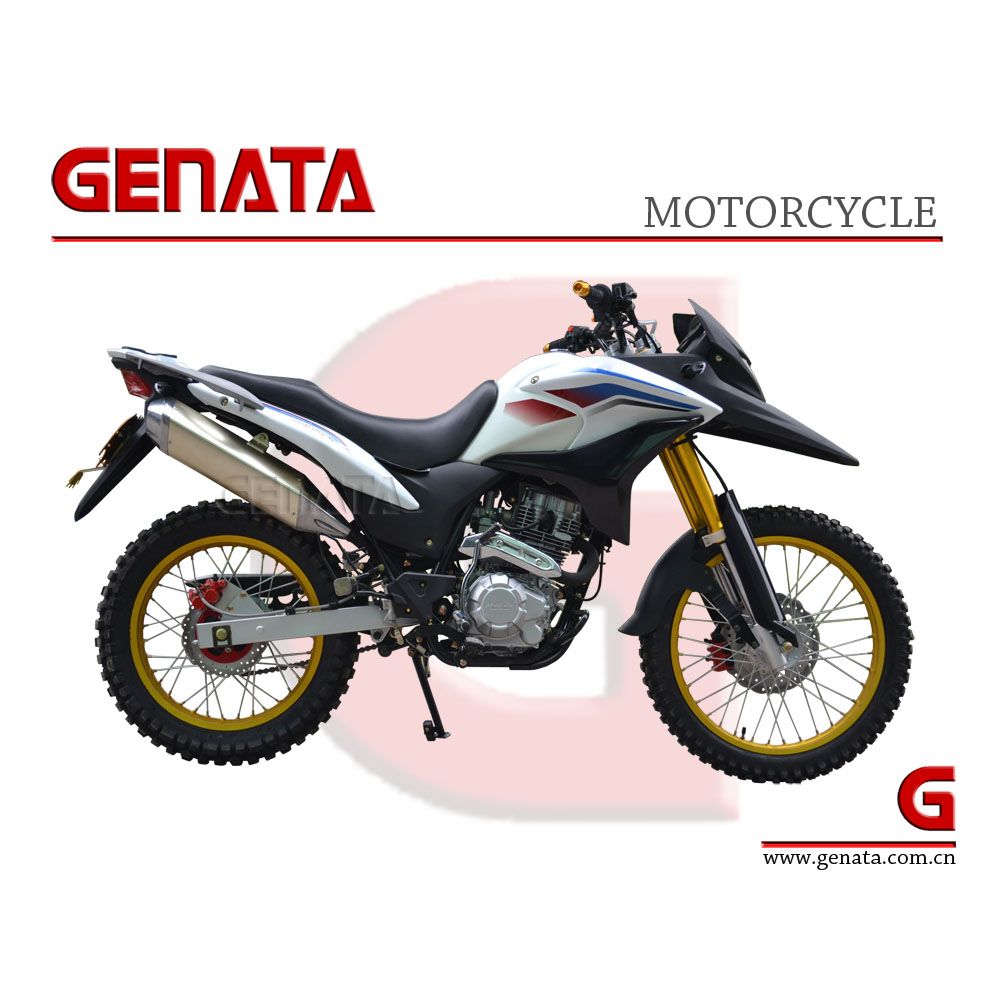

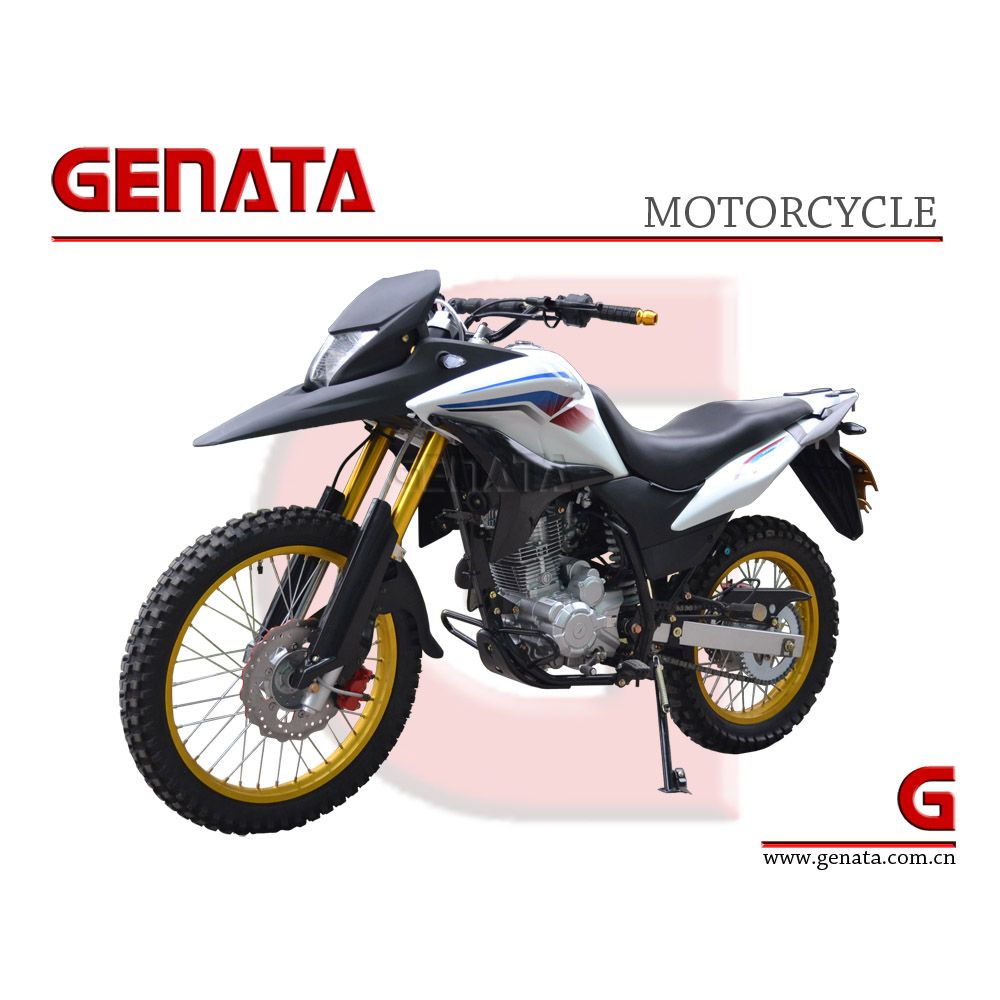

Newest Beast of prey Sport Motorcycle,
250cc/200cc are available
ENGINEEngine Type:
222.9cc, Single cylinder, 4-stroke,Air-cooled
Bore x Stroke: 66.5mm x 66.2 mm
Compression: 9.0 : 1
Idle speed (r / min): 1500
Max. Power (Kw / R /Min): 12 / 7500
Max. Torque (N.M / r/min): 16.5 / 6000
Displacement (ml): 222.9
Max. Speed (km/h): 125
Min. Fuel consume (g/km. H) ≤ 354
Ignition: CDI
Starting type: electric start
Lubrication: Pressure splash
Cooling: Air-cooled
CHASSISSuspension / Front : Hydraulic Spring Absorber
Suspension / Rear : Hydraulic Spring Absorber, Central Mono Shock,Swing Arm
Gear shift: International 5-speed, Manual Clutch
Brake (Front): Disk
Brake (Rear): Drum
Transmission: Chain Drive
Minimum turn radius(mm): 4500
Front / Rear tires : 90/100-21 / 120/90-18
Battery: 12V/7AH (12N7-3B)
DIMENSIONSL x W x H (mm): 2200 x 800 x 1230
Fuel Tank Capacity (L): 7L
Wheel Base (mm): 1430
Seat Height (mm): 880
Turning Radius (mm): 2250
Min Ground Clearance (mm) 260
Loading Capacity (kg): 150
Climb Ability (° ): ≥ 20
Net Weight (kg): 125
Gross Weight (kg): 150
Top-speed : 115km/h
OTHERSCOLOR: Red / Blue / Yellow / Green / Black
Packing carton size : 1880X460X880 (mm)
Container Loading: 30pcs/20''GP, 62pcs/40''GP, 93pcs/40''HQ, CKD: 135pcs/40''HQ
ENGINE |
|
Engine Type: | 222.9cc, Single Cylinder, 4 Stroke, air-cooling, engine |
Bore X Stroke (Mm): | 65.5× 66.2 |
Idle speed(r/min): | 1500 |
Max. Power (Kw/R/Min): | 12/7500 |
Max. Torque (n. m/r/min): | 16.5/6000 |
Displacement(ml): | 222.9 |
Max. Speed (km/h): | 115 |
Min. fuel consume(g/km. h): | ≤ 354 |
Ignition: | CDI |
Starting type: | electric start |
Lubrication: | Pressure splash |
Cooling: | air-cooled |
Battery: | 12V 7AH 12N7-3B |
BODY |
|
Gear shift: | International 5 gear |
Brake(F/R): | Disc / Drum |
Transmission: | Chain drive |
Minimum turn radius(mm): | 4500 |
Front / Rear tires: | 90/120-21 / 120/90-18 |
Front/Rear wheel: |
|
DIMENSIONS |
|
L X W X H (mm): | 2200X800X1230 |
Fuel Tank Capacity (L): | 7L |
Wheel Base(mm): | 1430 |
Turning Radius (mm): | 3150 |
Min Ground Clearance (mm): | 260 |
Loading Capacity(kg): | 150 |
Climb Ability(° ): | ≥ 20 |
Net Weight (kg): | 125 |
Gross Weight(kg): | 150 |
The Maximum Velocity: | 115 km/h |
Carton Size: | 1870 x 580 x 1130 |
OTHERS |
|
Container Loading: | 30pcs/20''GP 62pcs/40''GP 93pccs/40''HQ CKD: 135pcs/40''HQ |
