Specifications
Prod Model: |
QW240-080-S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Input Voltage: |
AC100-240V 50/60Hz |
Desktop Type: |
Yes |
Delivery Date: |
15days |
Package: |
White Box and Standard Export Cart |
Warranty: |
One Year |
Charger Type: |
Electric Charger |
Type: |
Lead Acid Battery |
Nominal Voltage: |
24V |
Product Description

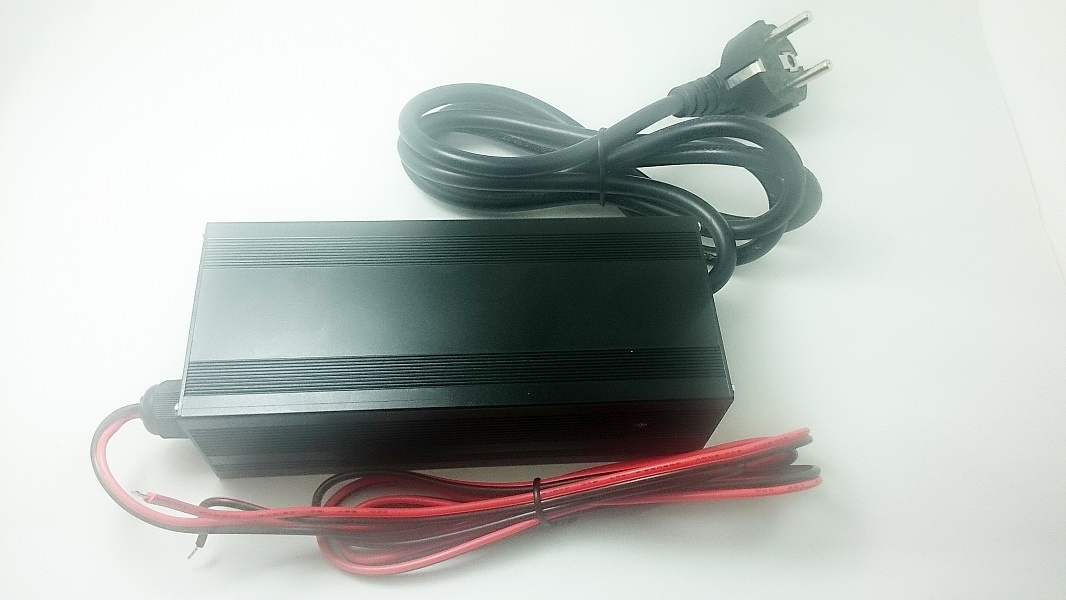

24V 8A Electric Mobility Scooter Part Lead Acid Battery Charger
Output: 24V/8A
Input: 180-240V or 90-130V
Leak current: ≤10MA
Suitbale battery 24V/64Ah
Efficiency: ≥80%
Dimension: 148x90x82mm
. HIGH FREQUENCY DESIGN, LESS POWER CONSUMPTION
. OVER VOLTAGE PROTECTION, SHORT CIRCU ITED PROTECTION, OVER POWER PROTECTION Features
- Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
- Constant big charging current for faster charging;
- automatically charging ending with Cut-Off output;
- Aluminum case with Fan Cooling
- Less than 5.5V low output voltage when no-load(no connected the battery)
- 100-240VAC input for worldwide power support.
Specification:
- Input: AC 100-240V 50-60Hz 1.0A
- Output: DC 24V
- Charging current: 8A
- Weight: 1500g(only body)
- Call us to know more details datasheet.
Safety protections:
- Over Voltage protection
- Short Circuit protection
- Polarity error protection
- Over power protection
when the charger is charging, indicated by 2LEDs:
- Power LED---Red power on
- Charging LED--- OFF no battery
- Red charging
- Green finished
- Red flashing error
Warning:
- Charge 24V lead acid battery/SLA/VRLA/GEL/AGM rechargeable battery only.
- Don't expose the product to rain or humidity to prevent from electric shock.
- It is normal if the product gets slightly hot when using.
- Keep the product out of children's reach.
- Don't remove the cover to prevent from being electric shocke
